Valve plug Bizon M18x1 5 screwed Warynski

Valve plug Bizon M18x1.5 screwed ZSR6160102 with threaded cover/aluminum cover Waryński

Valve plug Bizon M18x1.5 screwed ZSR6160102 with threaded cover/aluminum cover Waryński

Valve plug Bizon M18x1.5 screwed ZSR6160102 with thread with aluminum cover/cover Waryński

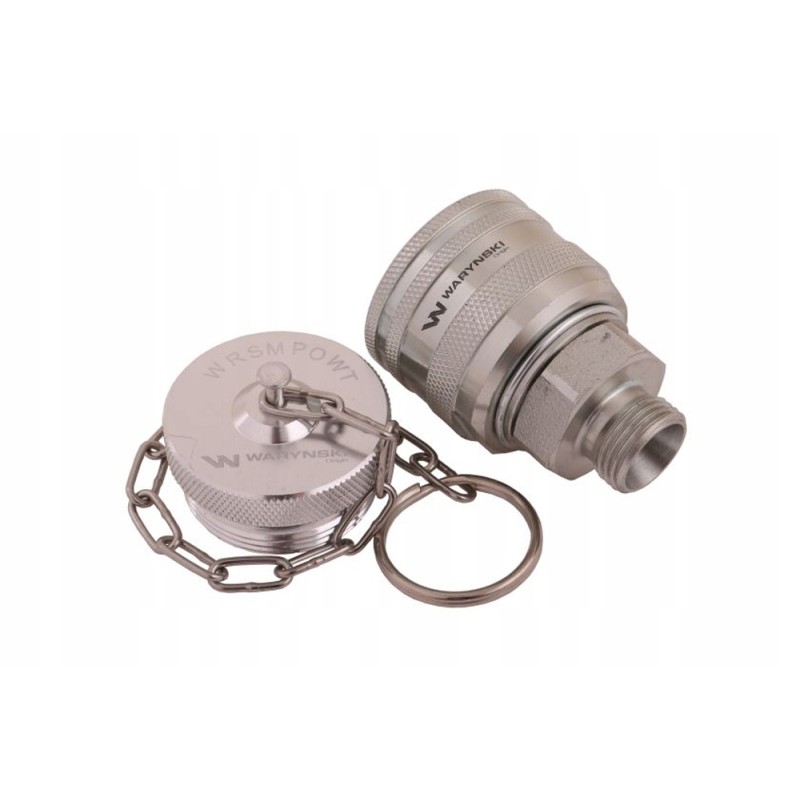

Set - valve plug ( Bizon) M18x1.5 screwed (ZSR6160102) with threaded aluminum cover/cover Waryński. The most popular old-type hydraulic valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. The aluminum cover (plug) with external thread and a chain perfectly fits screw-on valves - plugs of the WRS Waryński series. Protects the quick connector and hydraulic system against all kinds of dirt during operation.

*Parameters:

*Thread: External M18x1.5

*Type: Plug - Screwed agricultural + Aluminum cover with chain for WRS Waryński series plugs

*Cone - thread: 12L ( 12mm)

*Max. operating pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits sockets: WRSM22GN, WRSM18GN, WRSM20GN, WRSM22WEWGN, WRSM18GN-KP, WRSM22GN -KP

-️ Application:

Screwed quick couplings (valves) used in agricultural machines. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. Aluminum cover (plug) with external thread and chain protects the quick connector and the hydraulic system against all kinds of dirt during operation.

WRSM22GN WRSM18GN WRSM20GN WRSM22WEWGN WRSM18GN-KP WRSM22GN-KP

* Manufacturer: Waryński
