Quick connector with eliminator m22x1 5 external thread

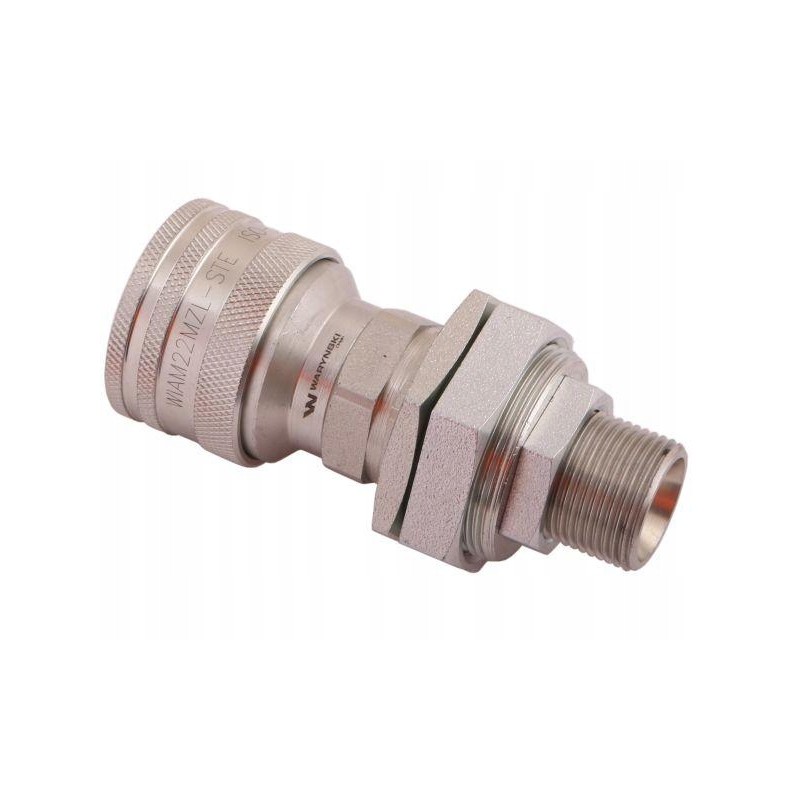

Hydraulic quick coupling, long socket with pressure eliminator M22x1.5 external thread EURO (504900) (9199822G/ST) (ISO 7241-A) WaryńskiHydraulic quick coupling long socket with pressure eliminator M22x1.5 external thread EURO (504900) (9199822G/ST) (ISO 7241-A) Waryński Waryński hydraulic quick connector (Adaptation of the old type 504900) - socket with EURO long pressure eliminator (long thread with a lock nut. External thread on the quick connector body with nuts adapted for installation in old type tractors. Quick connectors are designed in accordance with the dimensional requirements and quality standard ISO 7241 Series A, which specifies in detail the characteristics and dimensions to enable compatibility of quick connectors produced by different manufacturers in accordance with this standard.

*Parameters:

*Thread: External M20x1.5 (long with lock nut)

*Standard: (EURO ), ISO-7241-A (ISO-A)

* Type: EURO socket (adaptation of the old type 504900) with pressure eliminator

* Cone - thread: 60°

* Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 9 100820W, WIAM18SWE, WIAM18SZE, WIAM18SZLE, WIAM20SZE, WIAM22SWE, WIAM22SZE, WIAM22SZLE, WIAR12WE

*Fits cover: RM-GNIA12Z, 5049004EURO

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand.

WIAM14SZ WIAM16SZ WIAM16SZL WIAM18SZ WIAM18SZL WIAM22SZ WIAM22SZL WIAM20SZ WIAR12SW 9100820W 9100816W 9100818W9100822W 9100814W 9100820W, WIAM18SWE, WIAM18SZE, WIAM18SZ LE, WIAM20SZE, WIAM22SWE, WIAM22SZE, WIAM22SZLE, WIAR12WE,RM-GNIA12Z 5049004EURO

* Producer: Waryński
