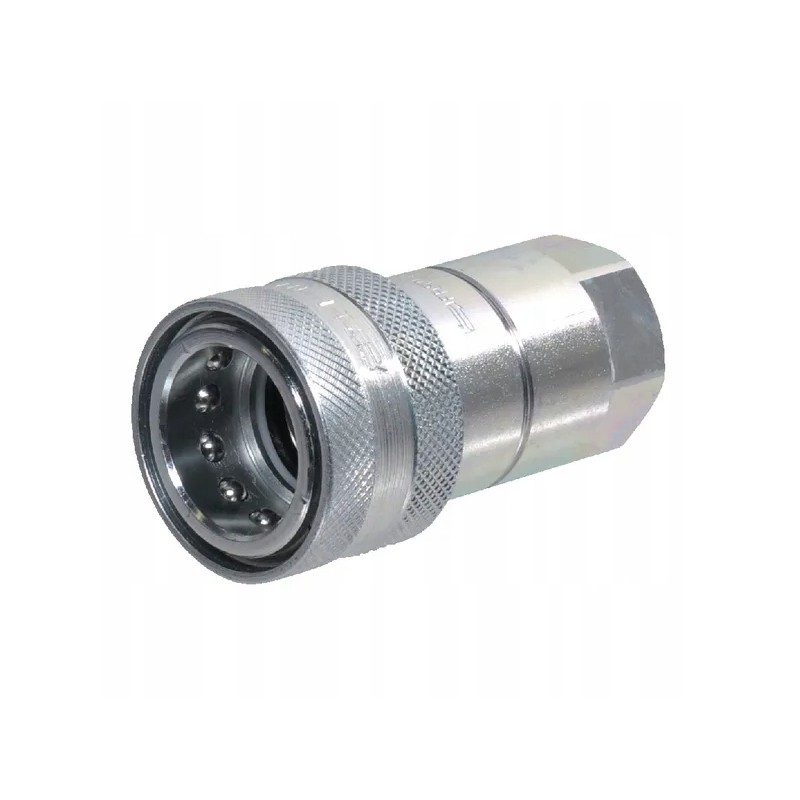

Quick connector with ball valve ns socket 3 8

NS38GASF Quick connector with NS ball valve, 3/8' socket, internal thread. 3/8' BSPProduct Details

With Ball Valve

Axial Reverse Actuation of Locking Sleeve (Single Acting)

No Break Off Function

Shape Straight - 2 Sides Connection

Size 3/8 inch

Size 10mm

Connector Type No. 1 Quick Connector

Type Connectors No. 1 - Male/Female Female

Connection Diameter 33mm

Connector Thread Diameter 3/8 inch

Connector Thread Type BSP

Connector No. 1 Wrench Size 0.94 inch

Type of connector no. 2 - male/female Female

Thread diameter of connector no. 2 3/8 inch

Number of turns per inch of thread of connector no. 2 19

Thread type of connector no. 2 BSPP

Possibility of connection under pressure No

Standard ISO 1179-1

Flow at 2 bar pressure 30 l/min

Outer diameter 1.3 inch

Outer diameter 28 mm

Total length 2.34 inch

L1 Total length 78 mm

Material Carbon steel

Surface treatment White passivated

Working pressure 250 BAR

Operating temperature max. 125 °C

Operating temperature min. -35 °C

Type of quick connector lock Balls around the circumference

Connection method Sleeve offset

Disconnection method Sleeve offset

Sealing material Nitrile rubber [NBR], Teflon (PTFE)

NS series

Valve type Ball

Weight 187.9 g
