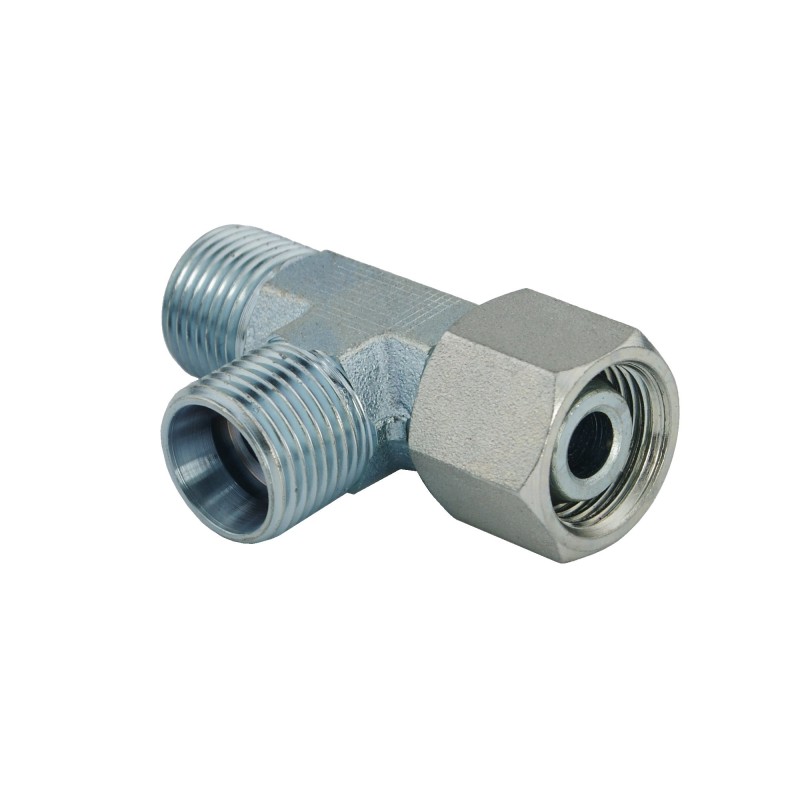

Hydraulic tee connector type bba 3 4 3 4 3 4

HYDRAULIC CONNECTOR BBA 3/4' / 3/4' / 3/4' construction and broadly understood industry.

T-connector, standardized light version with conical self-sealing clamp when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

3/4' thread diameter measured with a caliper:

Outer diameter [mm]: 26.1 - 26.4

Inner diameter [mm]: 24.1 - 24.5

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 12mm

Thread on the foot and on one side: external metric 3/4'

Thread on the other side : internal metric 3/4'

Version: light

Nominal pressure: 180bar

Maximum pressure: 230 bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
