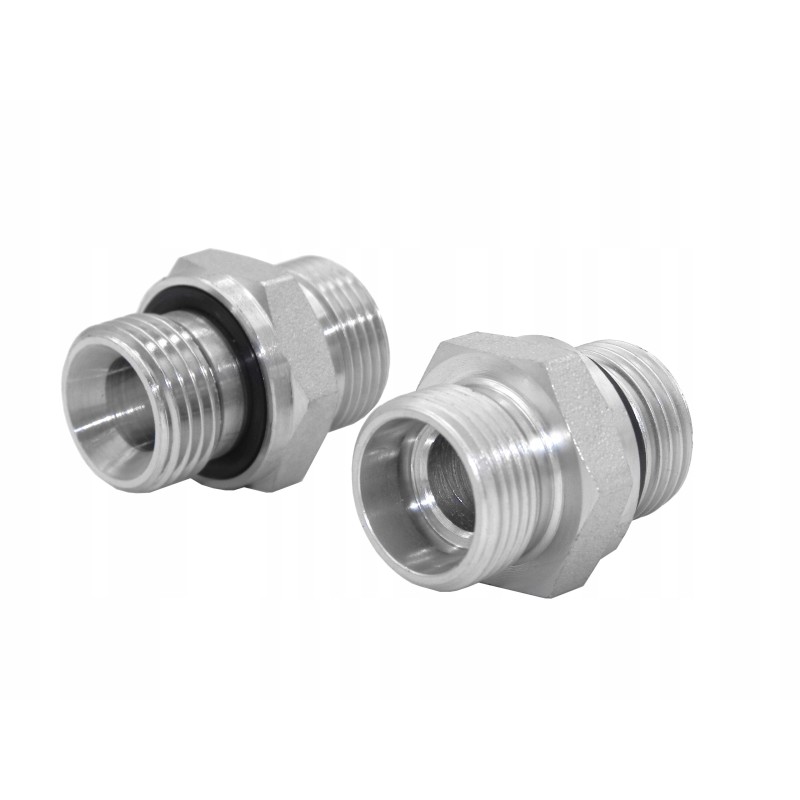

Hydraulic connection nipple 1 2 m18x1 5

HYDRAULIC CONNECTION NYPEL 1/2'' - M18x1.5 Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with rubber seal , screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.< p>

The other side is intended for screwing on a pipe, elbow or other fitting. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required in this place.

The connection is intended only for screwing into the body, it is not suitable for connecting two cables.

Technical data:

Thread on the body side: external metric BSP 1/2''

Thread on the other side: external metric 18x1.5 10S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
