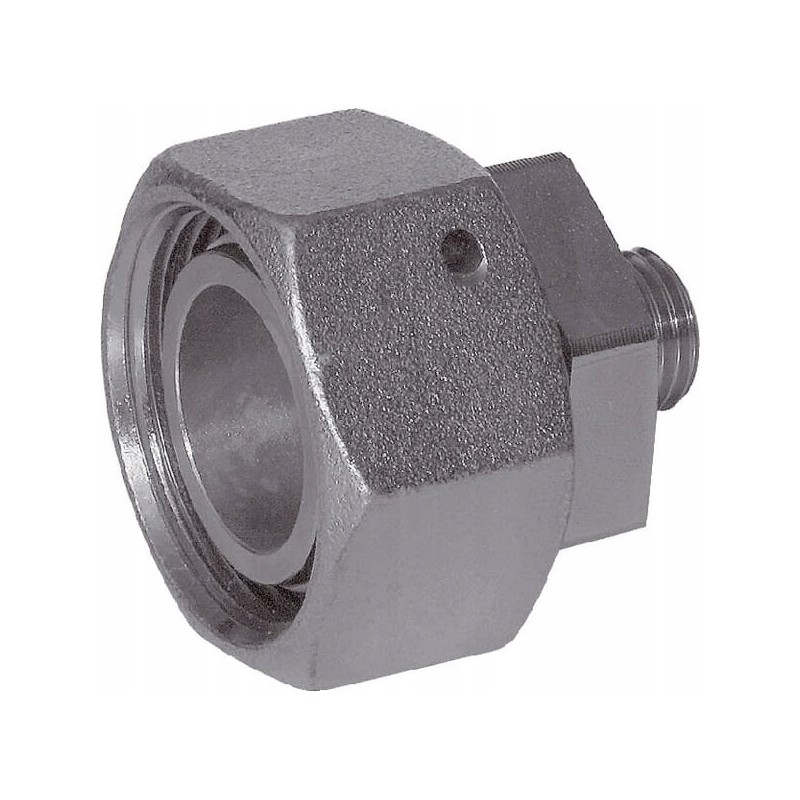

Straight connector with nut M16x1.5 10L - M12x1.5 6L Parameters

Part number: REDSD106L

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type - male/female: Female

Connector thread diameter: M16

Connector No. 1 thread pitch: 1.5 mm

Connector wrench size: 14 mm

Connector No. 2 type - male/female: Male

Connector 2 thread diameter: M12

Connector 2 thread pitch: 1.5 mm

Connector 2 thread type: Metric

Wrench size for connector no. 2: 19 mm

Inner diameter: 4 mm

Length: 25 mm

Max working pressure: 500 BAR

Series: L

L1: 25 mm

pipe Ø D1 (mm): 10 mm

pipe Ø D2 (mm): 6 mm

Pressure: PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

S3: 19 mm

Wrench size [S1]: 14 mm

Wrench opening, other end [S2]: 14 mm< p>

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Viton gasket available on request< p>

Pipe diameter

- 10 mm

- 6 mm

L2

- 39.5 mm

- 39.5 mm
