Distributor connections 1s p40 22 22 hydrolider

SET OF CONNECTIONS FOR 1 SECTION DIVIDER P40L/min BADESTNOSTProduction:

Original product of the Hydrolider brand, symbol: 1.10.70.300.7

Application:

They have a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connections enable the connection of the distributor with hydraulic lines.

Technical data:

1 piece = 1 set

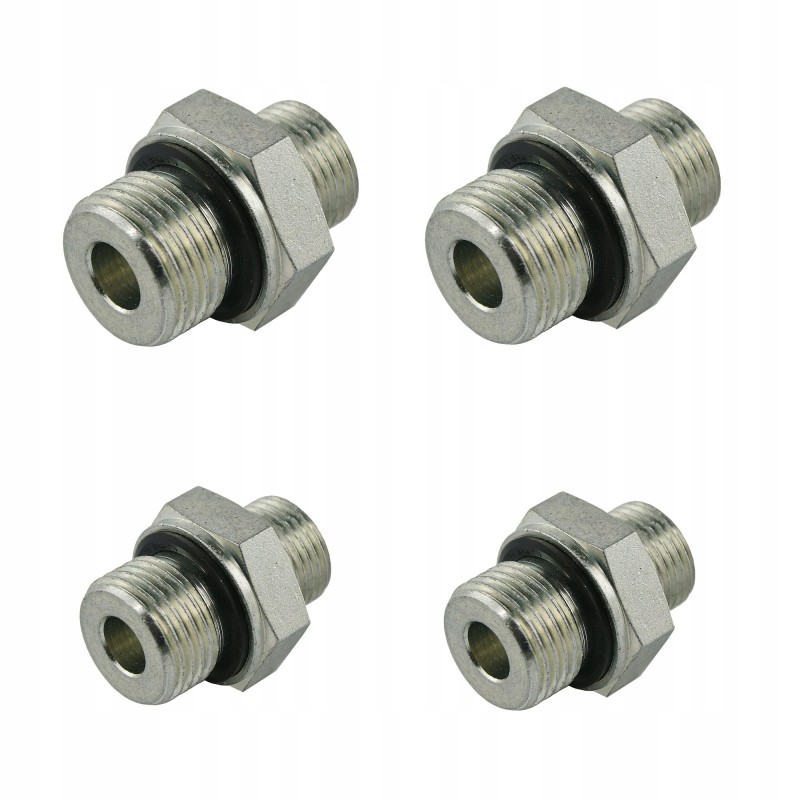

The set includes 4 connections, one for supply and return and 2 for sections. All connections in the set at the thread on the distributor side have a rubber seal. There is no need to add additional seals here.

Threads:

CONNECTION MOUNTED ON THE POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'< p>

Thread on the hydraulic line side: M22x1.5

---------------------------- -------------------------------------------------- -------

CONNECTION MOUNTED ON THE RETURN:

Thread on the side of the distributor, inch BSP: 1/2'

Thread on the side of the hydraulic conduit: M22x1.5

---------------------------------------- ---------------------------------------------

CONNECTIONS MOUNTED ON THE SECTION:

Thread on the distributor side, inch BSP: 3/8'

Thread on the hydraulic conduit side: M22x1.5

-- -------------------------------------------------- ---------------------------------

Material:

bodies : corrosion-resistant galvanized steel

sealing: rubber

Helpful data:

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

BSP thread diameter 1/ 2' measured with a caliper:

Outer diameter [mm]: 20.5- 20.9

Inner diameter [mm]: 18.6 - 19

Thread diameter 3/8' measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14 .9 - 15.4
