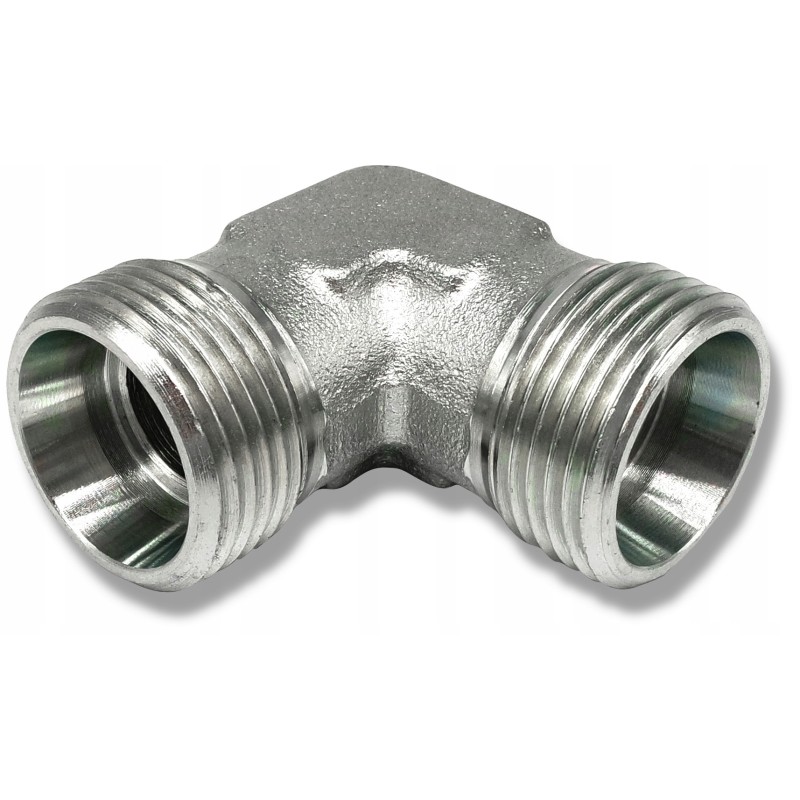

Hydraulic elbow connector 16 16 bb 90

BB 90° hydraulic connector - elbow M16x1.5 - M16x1.5 10LKOD SKRAW MET: [2974] Manufacturer: SM-G (SKRAW MET GROUP) Elbow connector in a standardized light version with a self-sealing cone when tightened.

Due to the lack of a rubber ED seal and no space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. This is done using connectors that can be purchased at our other auctions.

Application: The connector is designed to connect two wires or to be connected to other connectors with the same sealing cone - at an angle of 90°

Perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Technical specifications: Clamping cone angle: 24 ° (typical for the Polish standard)

Nominal diameter of the passage: 8 mm

M1 thread: external metric M16x1.5

M2 thread: external metric M16x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant
