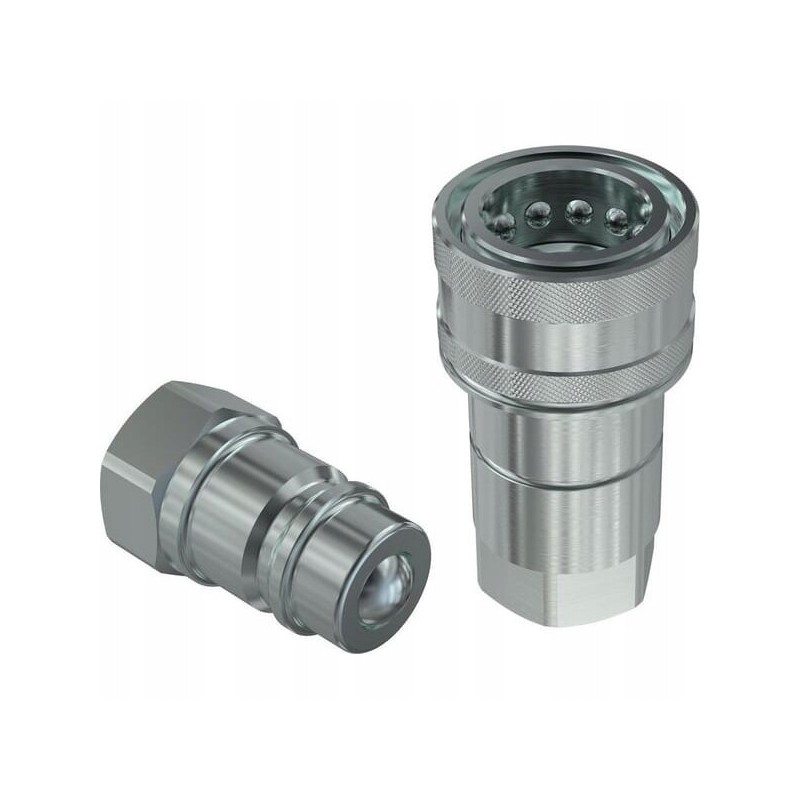

Quick connector 1 4 bsp ig

1/4 BSP IG quick connector INDEX: NS14GASF

Material: Carbon steel

Features: - With ball valve - Axial actuation of the locking sleeve towards the rear (single-sided action) - Without breaking function

Valve type: Ball

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Technology municipal - Viticulture - Mineral oil based fluids

Size: 6.3 mm

Outer diameter: 27 mm

ISO standard: 1179-1

Series: NS

Connection thread diameter: 1/4 inch

Connection diameter: 27 mm

Surface treatment: Passivated in white

Connector thread type: BSP

Total length: 66mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 100.5g

Working pressure: 250BAR

Connector type no. 2 - male/female: Female

Possibility of connection under pressure: No

Max. operating temperature: 125°C

Min.

Thread diameter of connection no. 2: 1/4 inch

Type of thread of connection no. 2: BSPP

Number of turns per inch of thread of connection no. 2: 19

Flow at a pressure of 2 bar: 15l/min

Type of connection no. 1: Quick connector

Type of connection no. 1 - Male/Female: Female

Connector #1 key size: 19mm
