Quick connector cnv plug 1 2 male thread

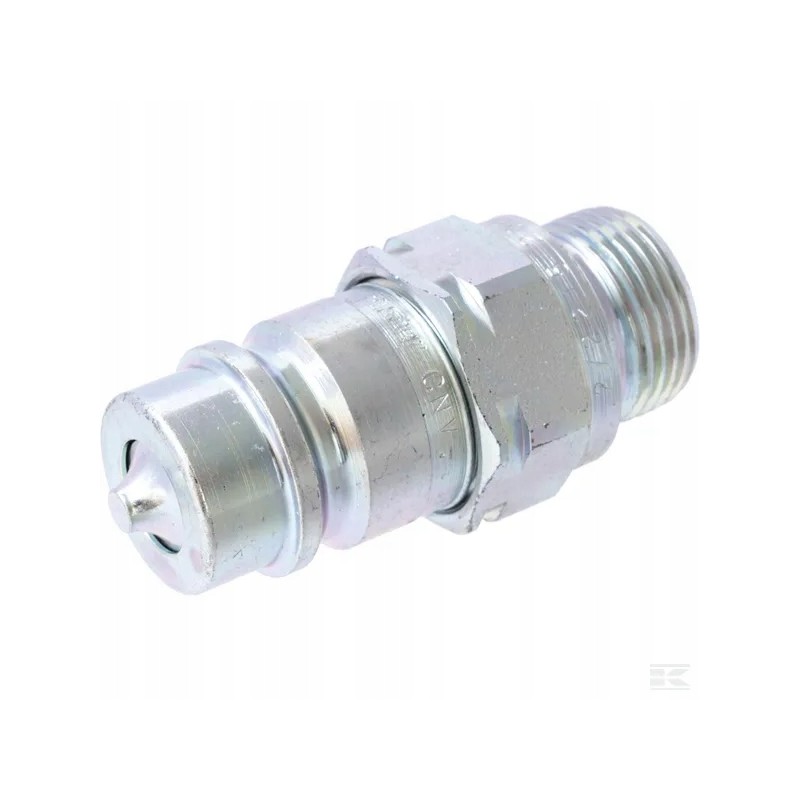

Quick connector plug CNV 1/2' external thread M22x1.5 15LApplication:

Part number: CNV0822215M

Unit: Piece

Application:

Universal use

Agricultural machinery

Mineral oil-based fluids

Properties:

Induction hardening in places exposed to rapid wear

Fits CPV Faster sockets

Technical information: Connection is made by pressing the plug (one-handed operation)

Shape: Straight - 2 sides of the connection

Size: 1/2 inch:

Size: 12.5 mm

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connection #1 Diameter: 0.81 inch

Connection Diameter: 20.5mm

Connection #1 Thread Diameter: 22mm

Connector no. 1 thread pitch: 1.50 mm

Connector no. thread type: Metric

Connector no. 1 thread type - code: 02

Connector no. wrench size 1: 1.06 inch

HEX.1Connector #1 Key Size: 27mm

Connector #2 Type: Thread

Connector #2 Type - Male/ female, male

H Diameter of connection no. 2: 15 mm

E Thread diameter of connection no. 2: M22

Thread pitch of connection no. 2: 1.50 mm

Connection thread type no. 2: Metric

Possibility of connection under pressure: Yes

ISO standard:

7241-A:

8434-1-L

Flow at 2 bar: 75 l/min

D1 Outside diameter: 1.18 inch

D1 Diameter outside: 30 mm

L1 Total length: 2.28 inch

L1 Total length: 58 mm

Material: Carbon steel

Surface treatment: White passivated

Operating pressure: 250 BAR

Operating temperature max.: 125 °C

Operating temperature min.: -25 °C

Quick connector lock type: Balls around the circumference

Connection method: Push to connect

Disconnection method: Pull to disconnect

Material seals:

Nitrile rubber [NBR]

Teflon (PTFE)

Series: CNV

Valve type: Poppet

Weight: 109.4 g
