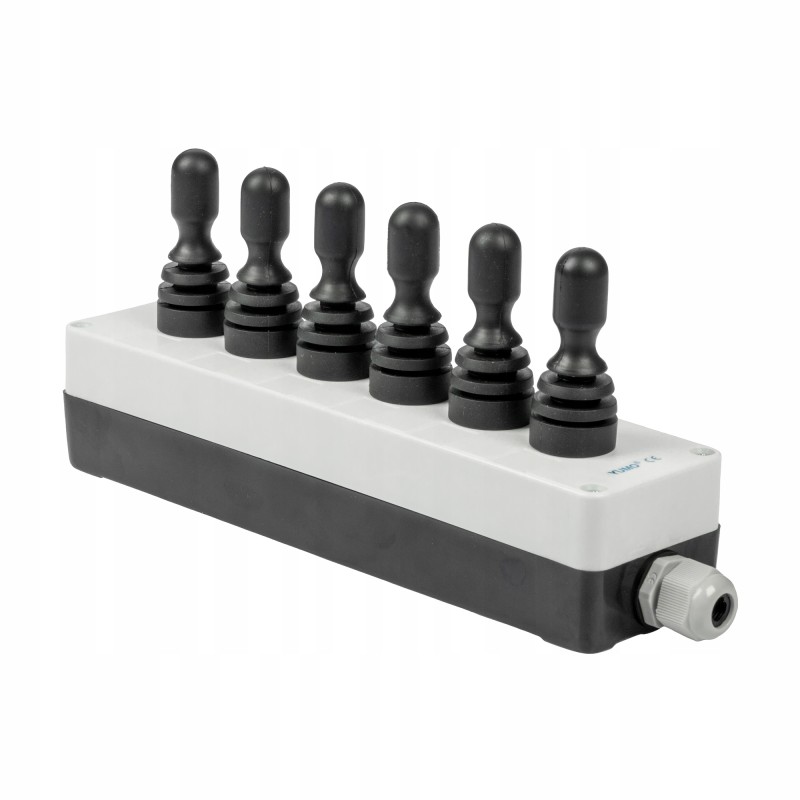

Control panel 6x joystick 1 10 61 062 hydrolider

HOUSING WITH 6 3-POSITION ELECTRIC JOYSTICKS WITH SPRING AND LATCH POSITIONINGProduction:

Original product of the Hydrolider brand, symbol: 1.10.61.062

Application:

Housing with six manipulators with 3-position levers, allows you to control six sections in an electrically controlled hydraulic distributor 12V and 24V. It is widely used in electrical control of hydraulic systems in agriculture, construction and industry.

Joystick technical data:

Joysticks 1, 2, 3, 4 and 5 They have 2 unstable positions (working) and 1 stable position (neutral center position). Monostable design where the joystick lever returns itself to the middle - neutral position.

Joystick 6 has all 2 working lever positions with a built-in latch. Bistable design where the joystick lever always remains in the set working position.

They have a rubber sealing cover that protects against dust, water and is resistant to oil.

Lever material: Steel

Lever cover material: Rubber

Joystick 1, 2, 3, 4 and 5 operation: Monostable (spring)

Joystick 6 operation: Bistable (latch)

Number of working positions: 2

Contact sets: 2 x NO

AC contact load capacity: 10A / 500V (with resistive load)

Insulation resistance min.: 100MΩ

Test voltage: 2.2kV

Mechanical durability: ≥ 500,000 cycles

Electrical durability: ≥ 50,000 cycles

Operating temperature: -25°C to +55°C

Certificates: CE

Case technical data:

Casing dimensions (mm): length 280, width 72, height 65

Installation dimensions (mm): 54 x 244

Housing material: Plastic

Housing color: white and black

Number of holes: 6

Hole diameter: Ø 22

Additional accessories: PG13.5 gland

Operating temperature: -25 to 55° C

Tightness class: IP54

Certificates: CE
