15 mm tube with a mesh of 27 mm, length 400 mm, hydrolider

15012868487943
Hydrolider
£28.16
Quantity
5 Items

Description

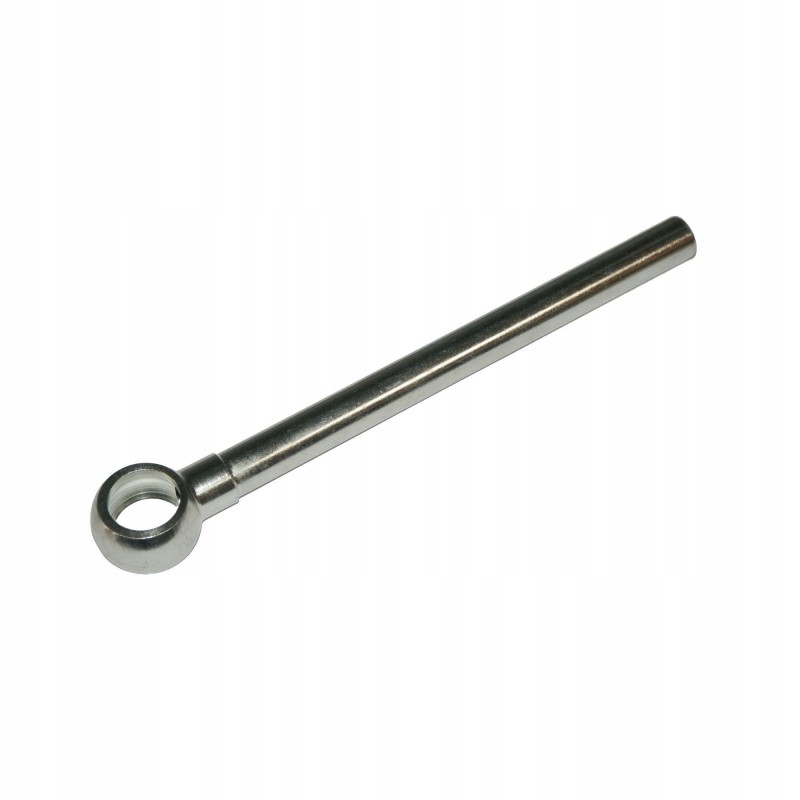

HYDRAULIC TUBE, 400 mm long, WITH 27 mm DIAMETER MESH. Production:

Original product of the Hydrolider brand, symbol: 1.60.52.215

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Metal pipes are a solid flow carrier oil in the hydraulic system. Compared to hydraulic lines, the tubes are characterized by a longer service life, the tube surface is galvanized, resistant to corrosion and weather conditions.

Technical data:

Internal diameter of the pipe (through): 12 mm

Outer diameter of the pipe: 15 mm

Total length: 400 mm

Material:

Steel

To install the pipe in the system, the so-called TEKALAN connectors, available at other auctions: (photo):

The TEKALAN system does not require additional sealing work during installation, e.g. welding or welding. The sealing occurs automatically, the ring seals the connection when the nut is tightened.

How to properly install the eyelet:

The eyelet has space for an ED washer or a copper washer, it is recommended to install the washer in two places, under the body and above the body (photo)

Example application:

installation of the so-called VBPDE valve LOCK on the hydraulic actuator:

Product Details
Hydrolider
15012868487943
A1.60.52.215
5 Items
New

Data sheet

Manufacturer
Hydrolider
Part Number
A1.60.52.215
Product weight with unit packaging
0.1 kg
