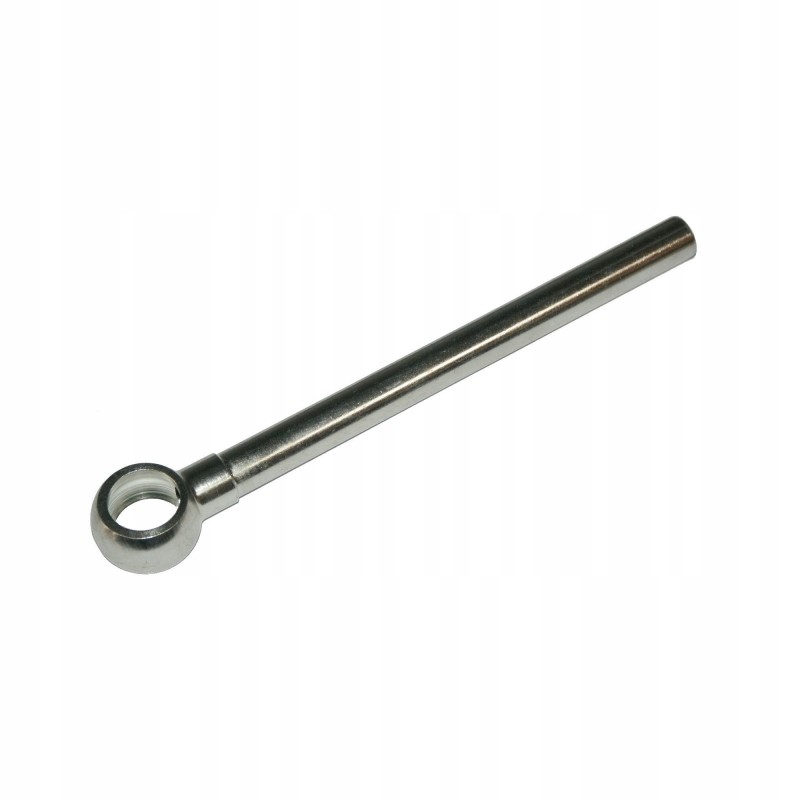

15 mm tube with mesh 1 2, length 305 mm, hydrolider

HYDRAULIC TUBE, 305mm LENGTH WITH 1/2' DIAMETER MESH Production:

Original product of the Hydrolider brand, symbol: 1.60.52.135

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Metal pipes they are a solid carrier of the oil flow in the hydraulic system. Compared to hydraulic hoses, the tubes are characterized by a longer service life, the tube surface is galvanized, resistant to corrosion and weather conditions.

Technical data:

Pipe internal diameter (through): 12 mm

Pipe external diameter: 15 mm

Total length: 305 mm

Material:

Steel

To install the pipe in the system, the so-called TEKALAN connectors, available at other auctions: (photo):

The TEKALAN system does not require additional sealing work during installation, e.g. welding or welding. The sealing occurs automatically, the ring seals the connection when the nut is tightened.

How to properly install the eyelet:

The eyelet has space for an ED washer or a copper washer, it is recommended to install the washer in two places, under the body and above the body (photo)

Example application:

installation of the so-called VBPDE valve LOCK on the hydraulic actuator:
