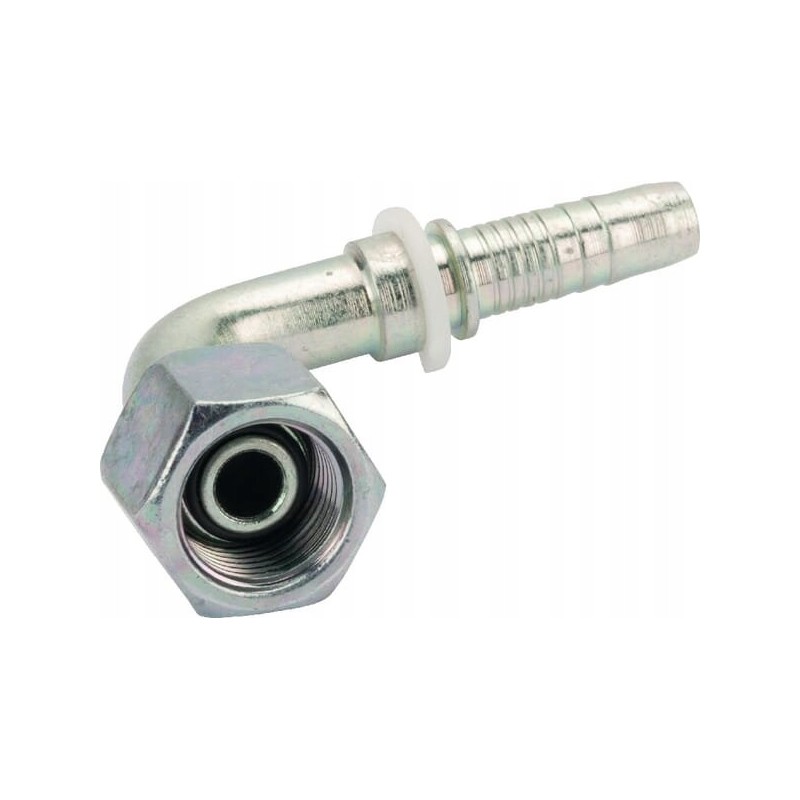

Tip dn10 3 8 bsp 90

DN10-3/8 BSP-90° fitting Parameters

Part number: PF10690

Unit: Piece

Manufacturer: Alfagomma

EAN : 8716106440948

Cone angle: 60 °

Shape: Elbow - 2 sides

Connector type no. 1: Conical

Connector type No. 1 - male/female: Female

Type of connector no. 1 - code: DKOR

Length of connector no. 1: 39.5 mm

Connector thread diameter: 3/8 inch

Connector Thread Type: BSP

Connector No. 1 Wrench Size: 22.0 mm

Connector No. 2 Type: Hose Barb

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 3/8 inch

ISO Standard: 228

Angle: 90 °

Material: Steel

OE reference number: H1220893-060600

Connection: BSP union nut with external cone 60°

Type: DKOR

Surface treatment

- Galvanized

- White passivated

Application

BSP screw connections
