Combustion engine honda gx160 ut2sx40h pump 3 80cm

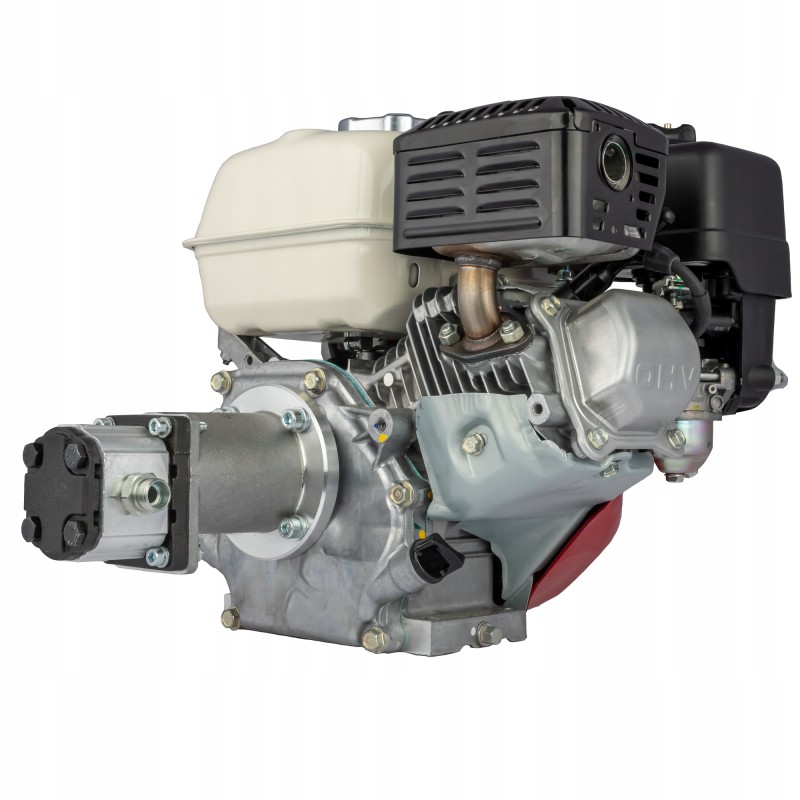

HONDA GX160 UT2SX40H INTERNAL COMBUSTION ENGINE WITH GR1 PUMP 3.80cm3 (13.7L/min / 3600 rpm)Production:

Original Honda product, symbol: 1.43.036.01.380

Application:

It is widely used in hydraulic systems in agriculture, construction and industry.

Pump parameters in cooperation with the combustion engine:

< p>

Recommended parameters for continuous operation:

Efficiency at 3000 rpm on the combustion engine: 11.4 l/min< p>

Maximum pressure at 3000 rpm on the combustion engine: 120 bar

Efficiency at 3600 rpm on the combustion engine: 13.7 l/min< p>

Maximum pressure at 3600 rpm on the combustion engine: 110 bar

Maximum operating parameters:

Efficiency at 3600 rpm on the combustion engine: 13.7 l/min

Maximum pressure at 3600 rpm /min on combustion engine: 140 bar

Engine technical parameters:

Model: GX160 UT2SX40H

Engine type: four-stroke, overhead valve OHV, air-cooled

Cylinder type: steel

Shaft type: horizontal

Displacement: 163 cm3

Cylinder diameter and stroke: 68 x 45 mm

Compression: 8.5:1

Maximum power: 3.6 kW (4.8 HP) / 3600 rpm

Continuous power at 3000 rpm/ min: 2.5 kW (3.4 HP)

Continuous power at 3600 rpm: 2.9 kW (3.9 HP)

Max torque: 10, 3 Nm / 1.05 kgm / 2500 rpm

Ignition: electronic

Starting: manual

Fuel tank capacity: 3.10 liters

Fuel consumption: 1.4L/h / 3600 rpm

Oil sump capacity: 0.6 liters

Dimensions (length x width x height): 312 x 362 x 346 mm

Weight: 15.0 kg

Technical parameters of the hydraulic pump:

Geometric volume: 3.80 cm3 /rev

Rotation direction: right

Rotation range: 800 - 4500 (rpm)

Connections: internal threads in the body 3/8'

Nominal pressure: 260 bar

Maximum pressure: 300 bar
