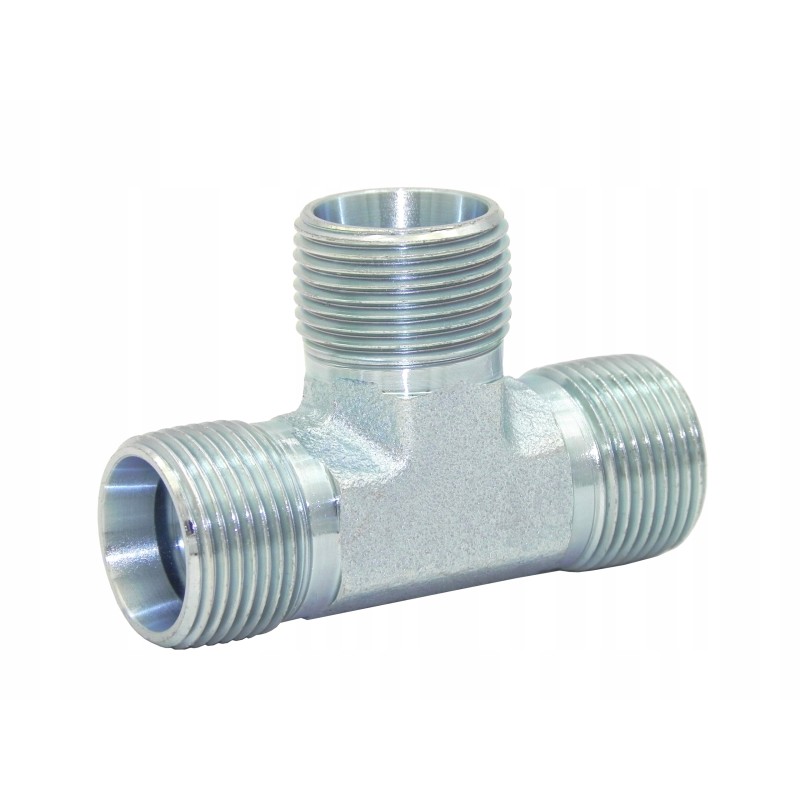

Hydraulic tee connector 3x m22x1 5 16l

HYDRAULIC TEE CONNECTOR 3x M22x1.5 16LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Tee connector, standardized light version with a conical self-seal when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Technical data:

Thread on all sides: external metric 22x1.5 16L

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
