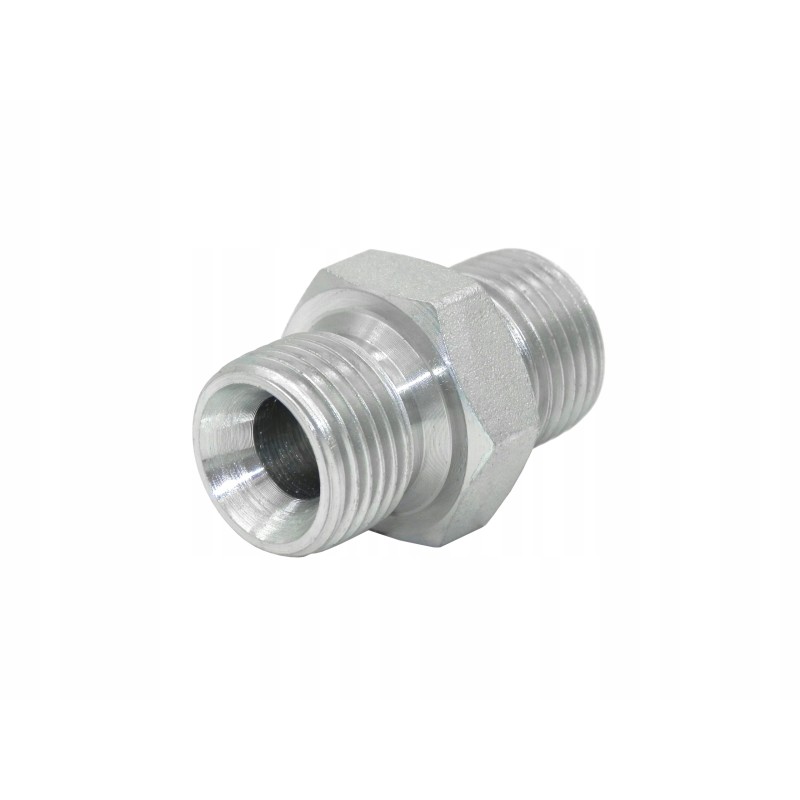

HYDRAULIC CONNECTOR BSP 3/4'' - BSP 1'' Application:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
Standardized connector light version with conical clamping self-seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.
It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.
Technical data:
Thread on one side: external inch BSP 3/4''
Thread on the other side: external inch BSP 1''
Nominal pressure: 180bar
Maximum pressure: 230bar
Fluid type: hydraulic oil
Material:
weldable steel, galvanized, corrosion-resistant
We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
