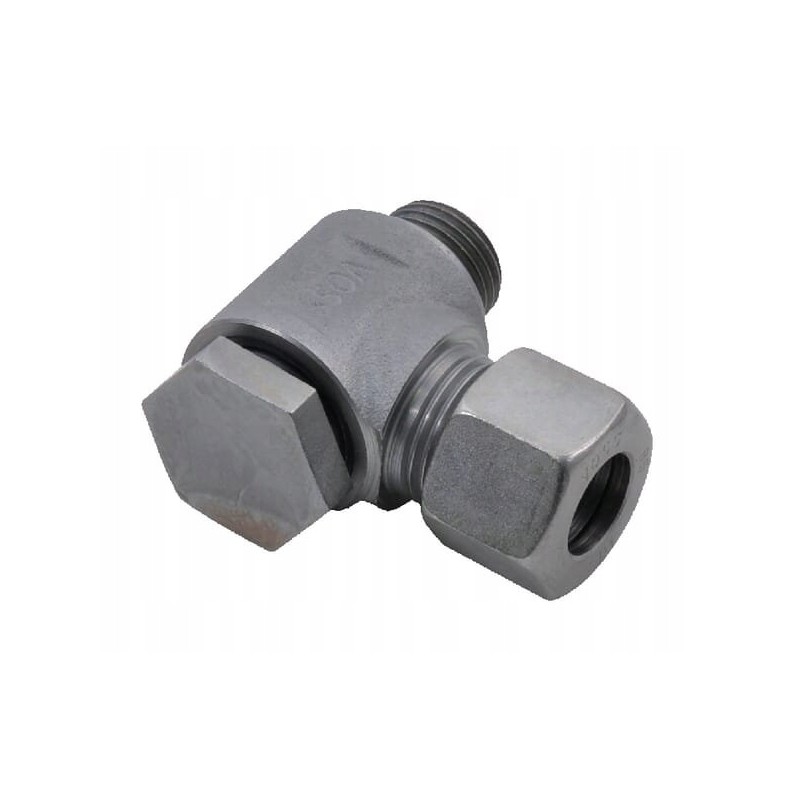

Angled threaded swivel connector 15l m18

Angle swivel threaded fitting 15L M18 Parameters

Part Number: RSWV15LM18

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Cutting Ring

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 15 mm

Connector No. Thread Diameter 1: M22

Connector Thread Length: 12 mm

Connector No. 1 Thread Pitch: 1.50 mm

Wrench Size for Connector No. 1: 24.0 mm

Connector No. 2 Type: Banjo

Connector No. 2 Type - Male/Female: Male

Thread Diameter connection no. 2: M18

Connection no. 2 thread pitch: 1.50 mm

Connection no. 2 thread type: Metric

Wrench size for connector no. 2: 27.0 mm

Pipe diameter: 15 mm

ISO standard: 228

Length: 42.5 mm

Angle: 90°

Max working pressure: 400 BAR

Seal material: Metal

Series: 15L

Dimension from the axis of the joint to the end of the next joint 36mm

Dimension from the axis of joint no. 2 to the end of the next joint 18.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
