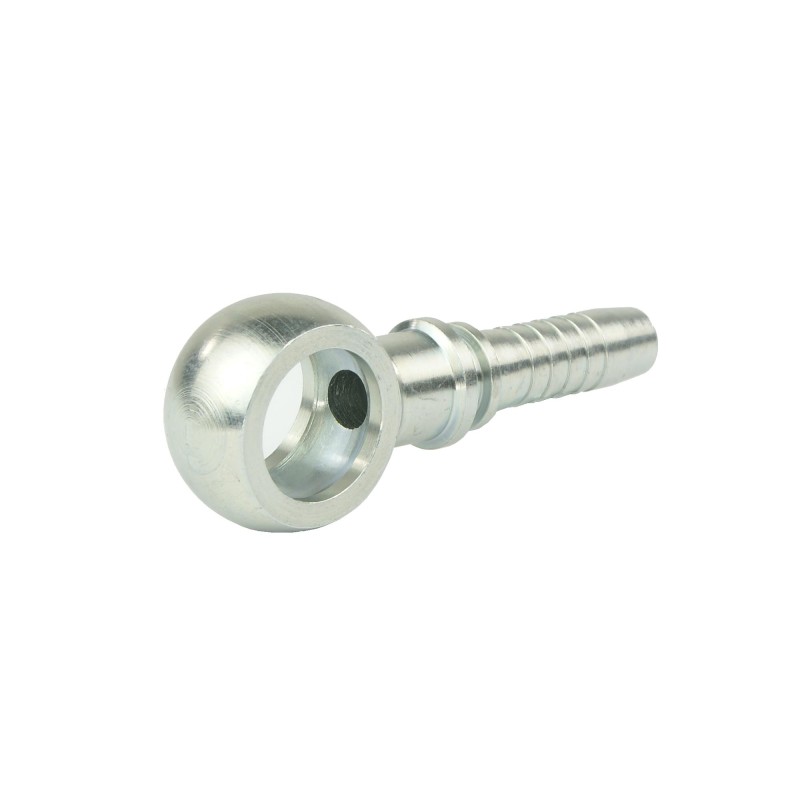

Rnm forging dn19 1 2sn fi30 h 32 hydrolider

STRAIGHT HYDRAULIC FITTING RNR FI 30mm FOR HYDRAULIC HOSE 1SN / 2SN DN19(DN20)Production:

Hydrolider, symbol: 4.13.19.030

Application:

The fitting used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN19 (20) group with single and double braiding. Fits sleeves from the DN19 (20) group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with eyelet for a 30 mm screw. Light version, body height 32 mm. Made in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8 µm. Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our forging elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C up to 100°C

Recommended hydraulic hose: DN19 (20) 1SN, DN19 (20) 2SN or other with an internal diameter of 19-20 mm

Made in Poland for Agricola Hydraulic Component
