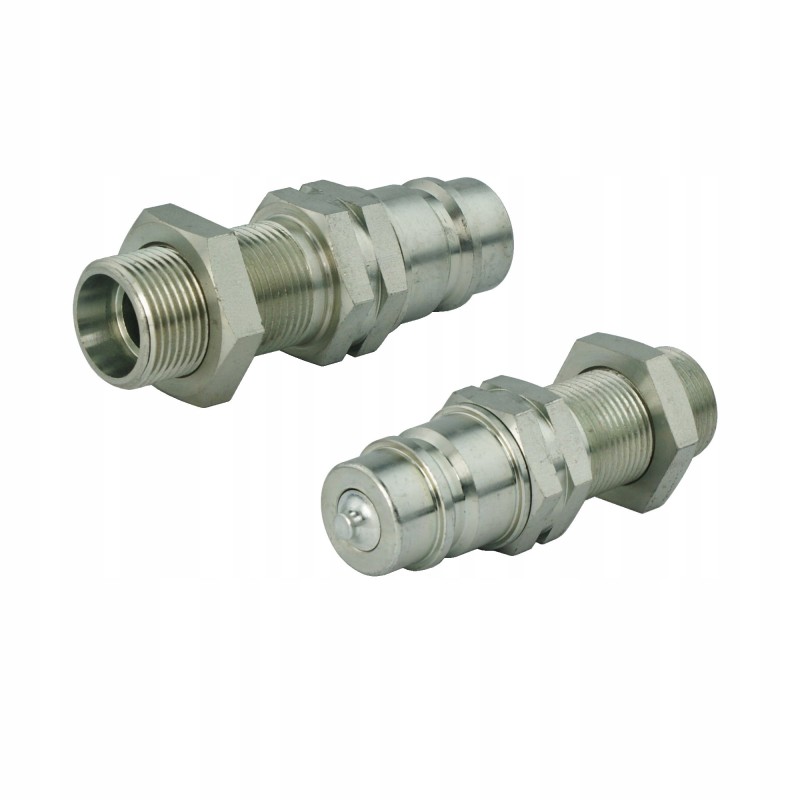

Hydraulic quick connector Euro plug M18 long

HYDRAULIC QUICK CONNECTOR PLUG TYPE EURO THREAD 18x1.5 LONG BULKHOLD Production:

Original product of the Hydrolider brand, symbol: 1.60.55.131

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Cable side thread: external metric 18x1.5

Thread type: long bulkhead, external

Nut included: YES

Clamping cone angle: 24° (typical for the Polish standard)

Quick connector type: euro bulkhead plug ISO standard

Material: galvanized steel

Weight: 0.25kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
