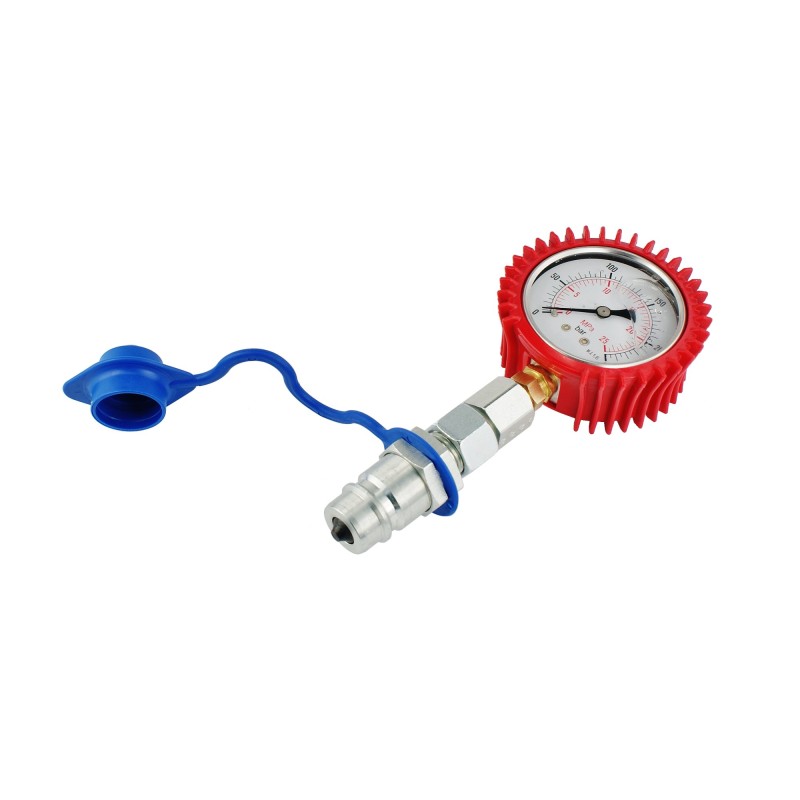

Pressure gauge with 63mm euro plug, 250bar hydrolider

MEASURING SET FOR CHECKING PRESSURE IN THE SYSTEM GLYCERINE MANOMETER WITH QUICK CONNECTOR AND EURO PLUG PRESSURE MEASURING RANGE: 0-250 BAR (PRIMARY PHOTO OF MANOM. WE SEND WITH A SCALE AS IN THE DESCRIPTION)

Set components:

Manometer

Manometer cover

Manometer connection

S quick connector euro plug

Quick connector cover

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.115.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set prepared for connection to any hydraulic line capable of generating pressure. Designed to measure oil pressure in closed hydraulic systems. The pressure gauge is filled with glycerine inside, so the measurement is accurate despite shocks and vibrations. It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-250 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C ]: -10 to +50

Accuracy class: 1.6

Euro quick connector, ISO standard plug

Material:

Housing: steel

Viewfinder: glass

(MANOM REVIEW PHOTO. WE SEND WITH SCALE AS IN DESCRIPTION)
