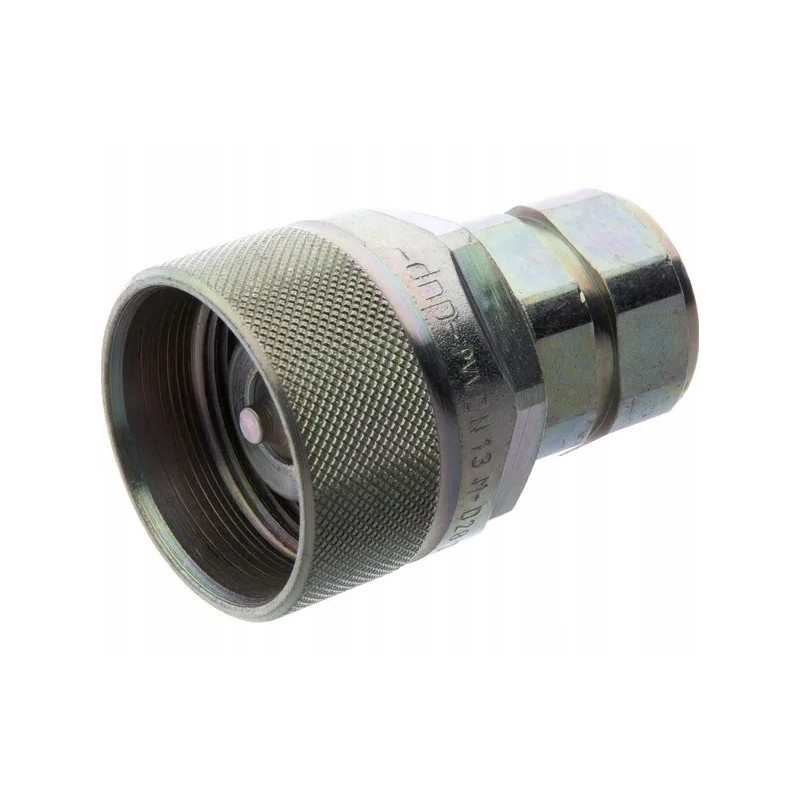

Screwed quick connector 1 2 female thread 1 2

SKSM12C08 Screwed quick connector 1/2' internal thread. 1/2' - plug Specifications

Self-locking connecting thread

Application

Construction machinery

Mineral oil based fluids Properties

Solid workmanship Low pressure losses With cut-off on both sides Technical information

The connector should be screwed in until it stops Benefits

High working pressure

Protection against unintentional unscrewing due to vibrations Shape

Straight - 2 sides of connection Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Men's

Connection diameter

22mm

Connector No. 1 thread diameter

M36

Thread pitch of connector no. 1

2.00 mm

Connector thread type

Metric

Key size for connector #1

36.0mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Female

Thread diameter of connection no. 2

1/2 inch

Number of threads per inch of thread of connector No. 2

14

Thread length of connector no. 2

12mm

Connection thread type no. 2

BSP

Possibility of connection under pressure Yes

ISO standard

14541

Flow at a pressure of 2 bar 80 l/min

Outside diameter

42mm

Working pressure max.

400 BAR

Operating temperature max.

100 °C

Operating temperature min.

-30 °C

OE reference number

HS102IGF08

Attention

Can be connected at a pressure of max. 50 bar.
