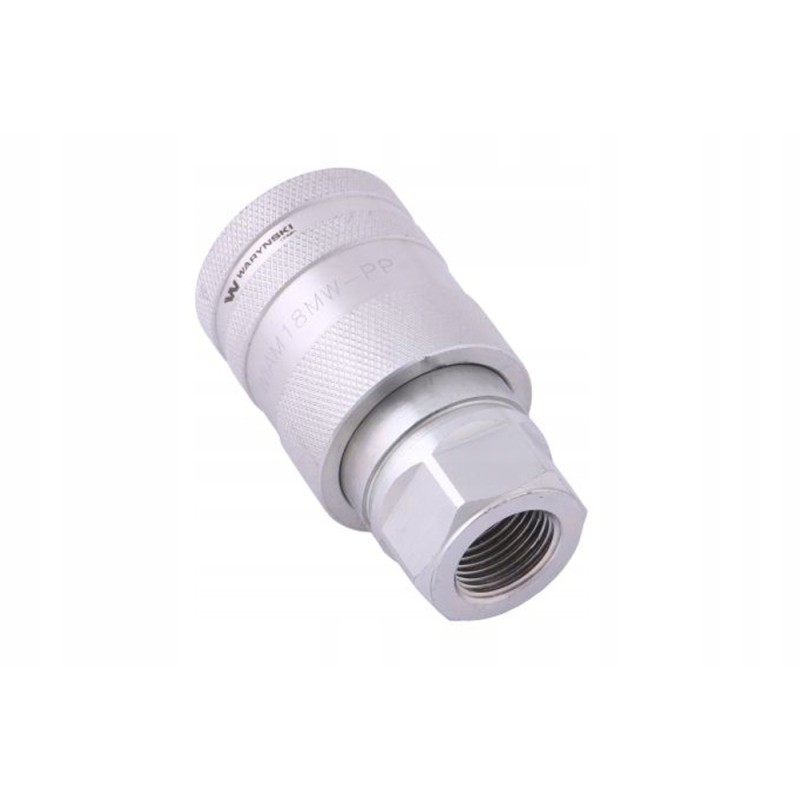

Hydraulic quick connector, socket M18x1 5, internal Euro

HYDRAULIC QUICK CONNECTOR M18X1.5 INTERNAL THREAD EURO PUSH-PULL (ISO 7241-A) hydraulic Waryński - EURO socket (PUSH-PULL). The most popular hydraulic quick connectors with a very wide range of applications. This type of quick coupler socket protects against cracking/breaking of the hydraulic hose and loss of hydraulic oil in the event of unintentional stretching - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve). The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: Internal M18x1.5​​​​​​

*Standard: (EURO), ISO-7241-A (ISO-A)​​​​​​​

*Type: PUSH-PULL socket

*Cone - thread: 15L (15m)

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 9 100820W, WIAM18SW, WIAM22SW

*Fits cover: RM-GNIA12Z, 5049004EURO

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand. ,WIAM14SZ

WIAM16SZ WIAM16SZL WIAM18SZ WIAM18SZL WIAM22SZ WIAM22SZL WIAM20SZ WIAR12SW 9100820W 9100816W 9100818W 9100822W 9100814W 9100820W WIAM18SW WIAM22SW,RM-GNIA12Z 504 9004EURO

* Producer: Waryński
