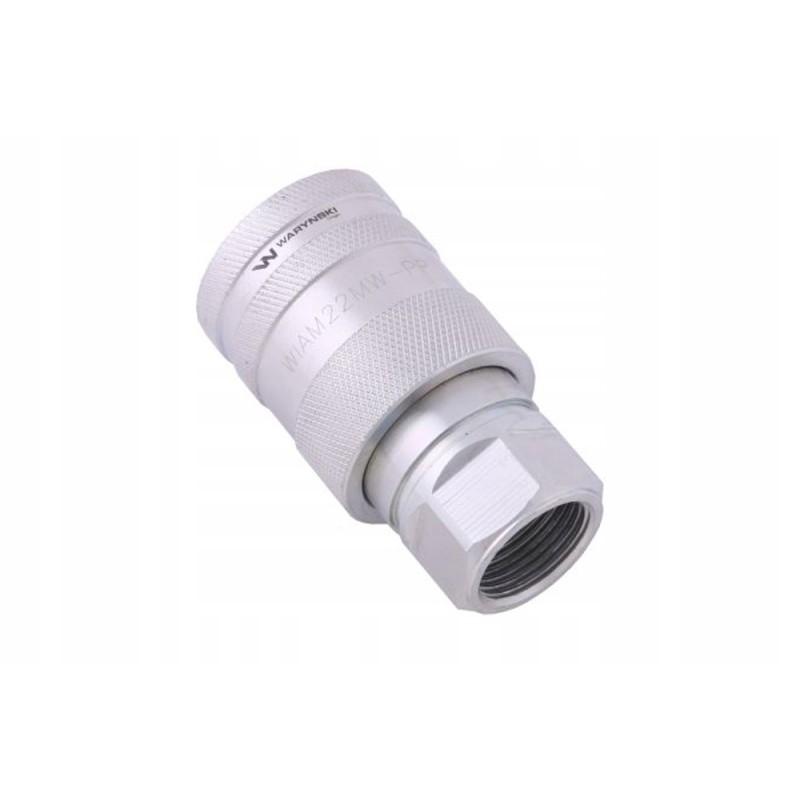

Hydraulic quick connector, socket M22x1 5 Warynski

HYDRAULIC QUICK COUPLING SOCKET M22X1.5 INTERNAL THREAD EURO PUSH-PULL (ISO 7241-A) WARYŃSKIQUICK CONNECTOR HYDRAULIC SOCKET M22X1.5 INTERNAL THREAD EURO PUSH-PULL (ISO 7241-A) WARYŃSKI

Waryński hydraulic quick connector - EURO socket (PUSH-PULL). Most popular

hydraulic quick connectors with a very wide range of applications. This kind

the design of the quick connector socket protects against cable breakage/breakage hydraulic system and loss of hydraulic oil in case of unintentional use tension - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve).

Quick connectors are designed in accordance with dimensional and quality requirements ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to

enable compatibility of quick connectors produced by different manufacturers according to this standard. Interchangeable with ISO-A quick connectors from other manufacturers.

such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Specification:

*Operating temperature - from -25°C to +120°C

*Thread - Internal M22x1.5

*Max working pressure - 25.0 Mpa / 250 bar

*Standard - (EURO), ISO-7241-A (ISO-A)

*Type - PUSH-PULL socket

*Fits plugs - WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 9 100820W, WIAM18SW, WIAM22SW

*Fits the cover - RM-GNIA12Z, 5049004EURO

Group - Quick connectors

-️Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand.

WIAM14SZ WIAM16SZ WIAM16SZL WIAM18SZ WIAM18SZL WIAM22SZ WIAM22SZL WIAM20SZ WIAR12SW 9100820W 9100816W 9100818W 9100822W 9100814W 9100820W WIAM18SW WIAM22SW,RM-GNIA12 Z 5049004EURO

*Producer: Waryński
