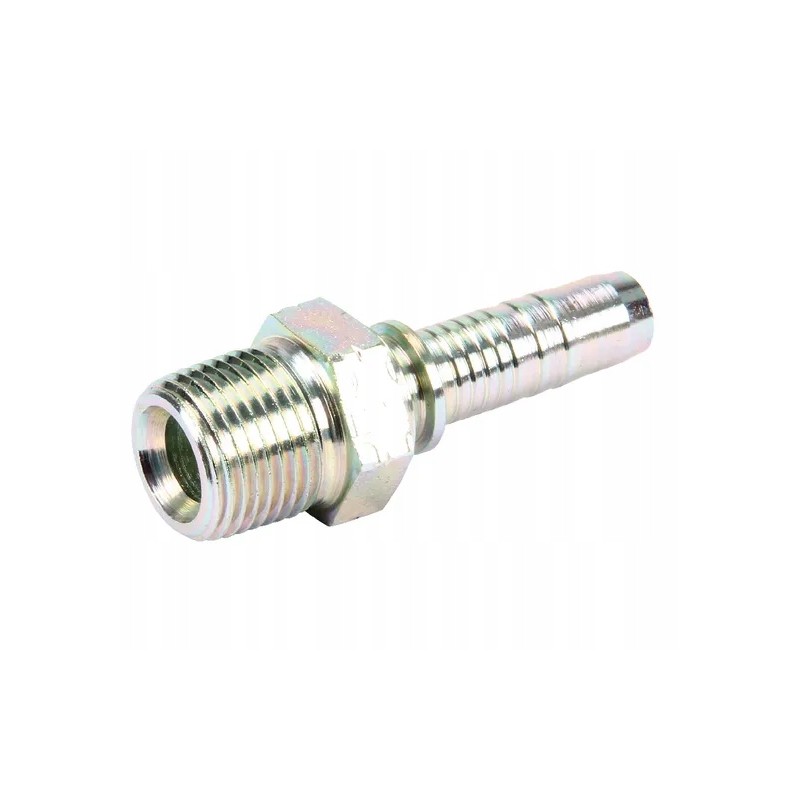

Pe106 tip dn10 3 8 npt

PE106 DN10-3/8 NPT fittingProduct details

Installation work

Sealing with Teflon tape or chemical sealants

Shape

Straight - 2 sides of connection

Connector type no. 1

Thread

Connector type no. 1 - male/female

Male

Connector type no. 1 - code

AGN

Connector thread diameter

3/8 inch

Wrench size for connector no. 1

19.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection No. 2 Diameter

3/8 inch

Connection No. 2 Diameter

10 mm

Dimension from the axis of the joint to the bottom of the next joint

27.8 mm

Material

Steel

Surface treatment

Zinc-plated

White passivated

Connection

Conical NPT male thread

Application

As screw-in connector, e.g. for quick connectors (low pressure)
