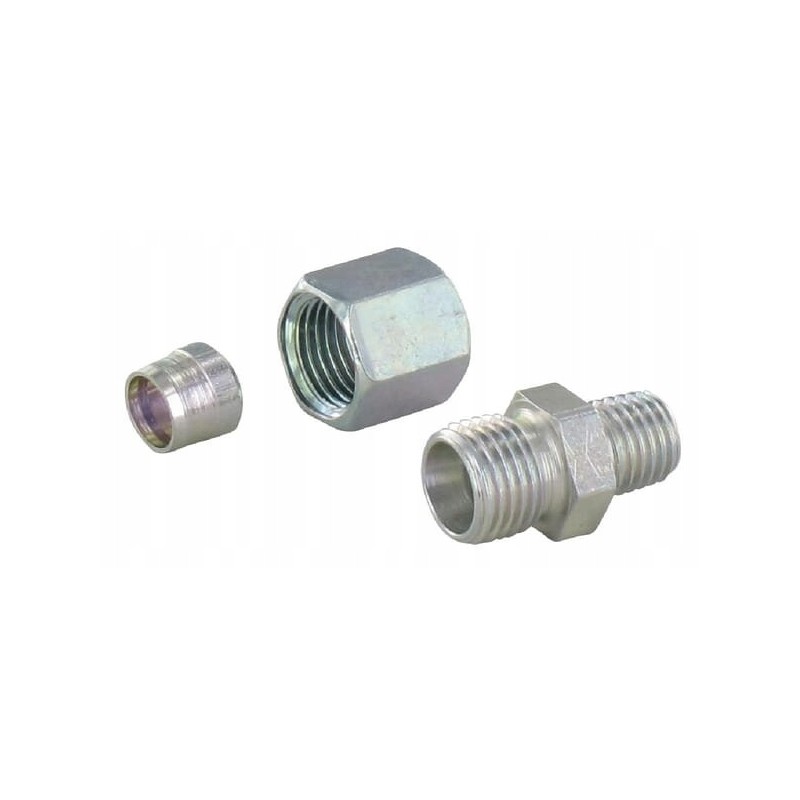

Straight screw-in connector gev6llmk8

Screw-in connector, straight Parameters

Part number: GEV6LLMK8

Unit: piece

Manufacturer: Unbranded

Shape: Straight - 2 sides connections

Connector type: Cutting ring

Connector type - male/female: Female

Connection diameter: 6 mm

Connector thread length [K]: 8 mm

Wrench size for connector [S1]: 12 mm

Thread diameter of connector no. 2: M10

Thread pitch of connector no. 2: 1 mm

Connector No. 2 thread type: BSP

Pipe diameter: 6 mm

Body height: 11 mm

Working pressure max. .: 100 BAR

Series: LL

Specifications

- 2S cutting ring

Application

- Hose hydraulic

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

Technical information

- Available on request in a stainless steel version

Dimension from the axis of the connector to the end of the next connector [L1]

20.5 mm

Dimension from the axis of joint no. 2 to the end of the next joint [L2]

9 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel-plated
