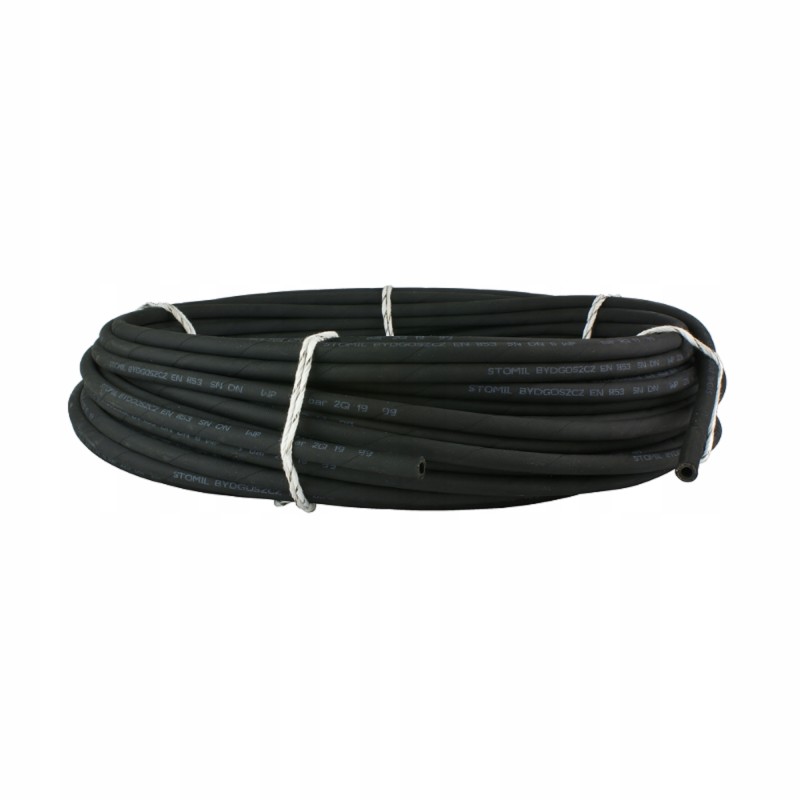

Reinforced hydraulic hose 2sn dn12 275bar stomil

STOMIL BYD HYDRAULIC HOSE. DN12 2SN 275bar 1/2 INCH 1 PIECE = 1 METER Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.02.012

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 80L/min and a pressure of up to 275bar. The hose fits all fittings and sleeves from the DN12 group (13), which have the 2SN tag in their symbol.

.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness.

Outer layer: synthetic rubber resistant to oils, fuels and difficult weather conditions.

Reinforcing inner layer: double steel cross braid.< p>

Operating temperature range for all layers: -40°C to 100°C

Recommended nominal operating pressure max. 275bar.

The test pressure is twice the nominal pressure.

The burst pressure is four times the nominal pressure

Diameter internal passage: 13mm

Outer diameter: 21mm

Production: Polish Stomil Bydgoszcz
