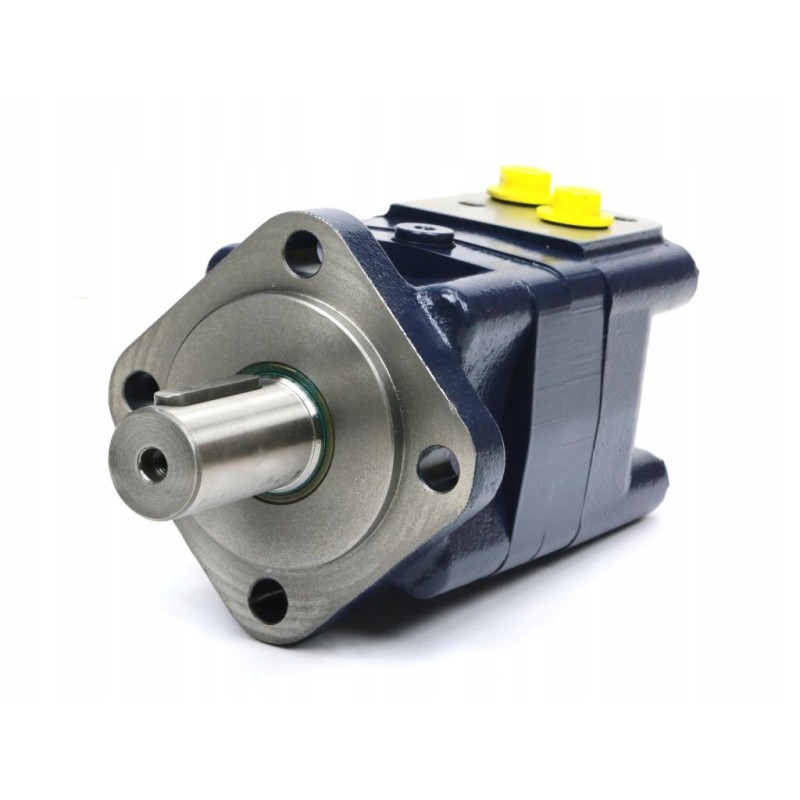

WMS orbital hydraulic motor 125 cm3 rpm 175 bar max.225 bar WaryńskiWMS orbital hydraulic motor 125 cm3 rpm 175 bar max.225 bar Waryński
Technical data
* Absorbency: 126.3 cm³ /rev
*Shaft diameter: Ø32 mm
*Drain connection thread: 1/4' BSP' inch
*Connection threads: 1/2' BSP ' cal
*Max. working pressure: 20 MPa 200 bar - Note: maximum 6 seconds / 1 minute of engine operation, exceeding these parameters may damage the engine MPabar
*Max. Instantaneous pressure: 22.5 MPa 225 bar - Note: maximum 1 second / 1 minute of engine operation, exceeding these parameters may result in immediate engine damage MPa bar
*Max. Nominal pressure: 17.5 MPa 175 bar - Note: maximum continuous engine operating pressure MPa bar
*Max output power: 16 kW
*Max torque: 345 Nm
*Max nominal torque: 303 Nm
*Max. Nominal rotation speed: 590 rpm
*Max. Working fluid flow: 75 l/min
WMS orbital hydraulic motor 125 cm³/rpm (175 bar / max. 200 bar / max. temporary 225 bar) Waryński. WMS series motors are characterized by compact design, high torque and high absorbency. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. The reinforced shaft seal allows both series and parallel motor connections. In order to achieve a longer service life, it is recommended that optimal operating conditions be at the level of 1/3 to 2/3 of the maximum parameters.
*Application:
Road works machines, agricultural machines, machine drives vehicles conveyors machine tools mining machines food industry machines.
*Interchangeable indexes:
Orbital hydraulic motor BM3125/BMS125 B480-SMS125E4BDGP Danfoss:OMS125 Char-Lynn:104.1386 SAM:HPR130DC32
* Product code: WMS-125
* Buy once and do it right!
* Producer: Waryński Original
