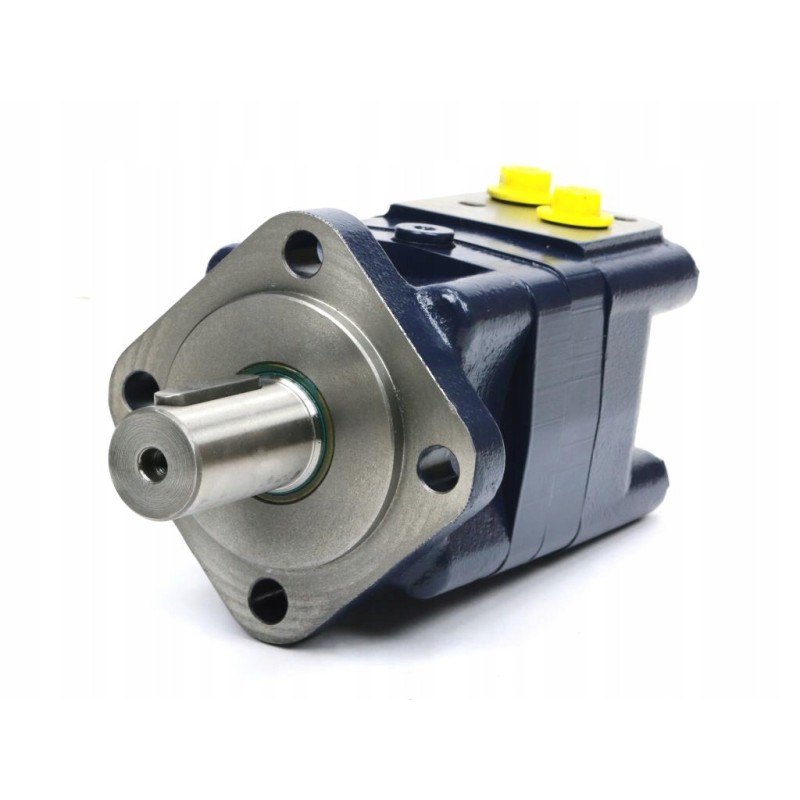

Hydraulic motor 100 cm3, Warynski rpm

WMS orbital hydraulic motor 100 cm3/rev 175 bar max.225 bar WaryńskiWMS orbital hydraulic motor 100 cm3/rev 175 bar max.225 bar Waryński

Technical data

* Absorbency: 100, 5 cm³/rev

*Shaft diameter: Ø32 mm

*Drain connection thread: 1/4' BSP' inch

*Connection threads: 1/2 'BSP' cal

*Max. working pressure: 20 MPa 200 bar - Note: maximum 6 seconds / 1 minute of engine operation, exceeding these parameters may damage the engine MPa bar

*Max. Instantaneous pressure: 22.5 MPa 225 bar - Note: maximum 1 second / 1 minute of engine operation, exceeding these parameters may result in immediate engine damage MPa bar

*Max. Nominal pressure: 17.5 MPa 175 bar - Note: maximum continuous engine operating pressure MPa bar

*Max output power: 16 kW

*Max torque: 283 Nm

*Max nominal torque: 242 Nm

*Max Nominal speed: 745 rpm

*Max. Working fluid flow: 75 l/min

WMS orbital hydraulic motor 100 cm³/rev (175 bar / max. 200 bar / max. temporary 225 bar) Waryński. WMS series motors are characterized by compact design, high torque and high absorbency. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. The reinforced shaft seal allows both series and parallel motor connections. In order to achieve a longer service life, it is recommended that optimal operating conditions be at the level of 1/3 to 2/3 of the maximum parameters.

*Application:

Road works machines, agricultural machines, machine drives vehicles conveyors machine tools mining machines food industry machines.

*Interchangeable indexes:

Orbital hydraulic motor BM3100/BMS100 B480-SMS100E4BDGP Danfoss:OMS100 Char-Lynn:104.1385 SAM:HPR100DC32

* Product code: WMS-100

* Buy once and do it right!

* Producer: Waryński Original
