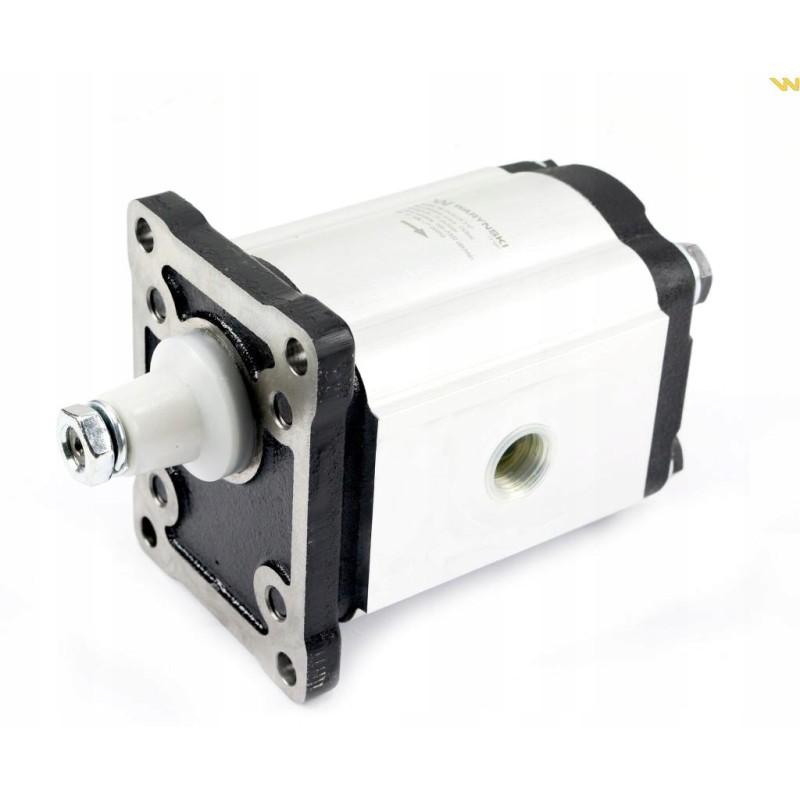

Hydraulic pump 28 0 cm3 max 160 bar Warynski

Hydraulic gear pump 28.0 cm3 (group 2 - European type) shaft 1:8 threaded connections (right rotation) max. 160 bar Waryński

Hydraulic pump, reinforced W-PHAG2E28P (efficiency: 28.0 cm3/rev .) Waryński. Waryński 2-group hydraulic pumps, thanks to their small, compact dimensions and compact and durable structure, are widely used in many industries, agriculture and mobile hydraulics. Our pumps are additionally reinforced with cast iron covers - this guarantees long and failure-free operation. The geometric working volume of pumps in this group ranges from 4 to 31 cm3/rev

Application:

Agricultural machinery

Forest machinery

Mobile hydraulics

Industry

Forklifts

Gardening equipment

Loaders

Hydraulic power units

and others.

Interchangeable indexes: PLP2025D082E2, 25702008

Performance: 28.0 cm3/rev

Type: Hydraulic gear pump, 2 group. European type

Shaft: conical 1:8, M12x1.5

Rotation direction: right

Rotation range: 500 - 2200 rpm

Material: Aluminum body, cast iron plates, seals: NBR

Connections: threaded, suction: 3/4'BSPP, discharge: 1/2'BSPP

Temperature operation: ˗20°C ...+80°C

Max. Instantaneous pressure: 19 MPa (190 bar) - Note: maximum 20 seconds / 1 minute of pump operation (exceeding these parameters may damage the pump)

Spacing of mounting holes: 71.5 x 96.2mm

Centering flange: ø 36.5mm

Max. nominal pressure: 16 MPa (160 bar) - Note: maximum continuous operating pressure of the pump

Max. peak pressure: 21 MPa (210 bar) - Note: maximum 8 seconds / 1 minute of pump operation (exceeding these parameters may result in immediate damage to the pump)

Type of oil: hydraulic mineral HLP HV (DIN 51524)

Oil filtration: 10 - 25 microns

Oil purity class: NAS 1638: 8 / ISO 4406:1999: 20/18/15

Recommended oil viscosity: 10 to 100 mm²/s (cSt)
