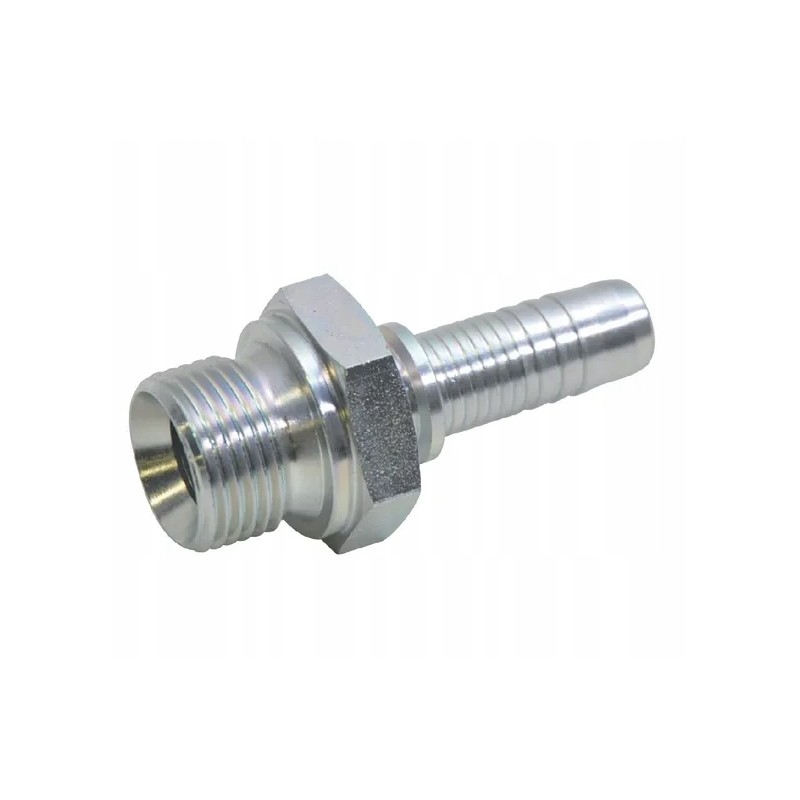

Pn84 ending dn08 1 4 bsp

PN84 Tip DN08-1/4 BSPEAN

8716106440788

Cone angle

60 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Male

Type of connector no. 1 - code

AGR

Length of connector no. 1

26.3 mm

Connector thread diameter< p>

1/4 inch

Connector Thread Type

BSP

Wrench Size for Connector No. 1

19.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection diameter no. 2

5/16 inch

Connection diameter no. 2

8 mm

ISO standard

228

8434-6

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

BSP external thread with 60° internal cone

Application

As a screw-in connector, e.g. quick connectors

Type

AGR
