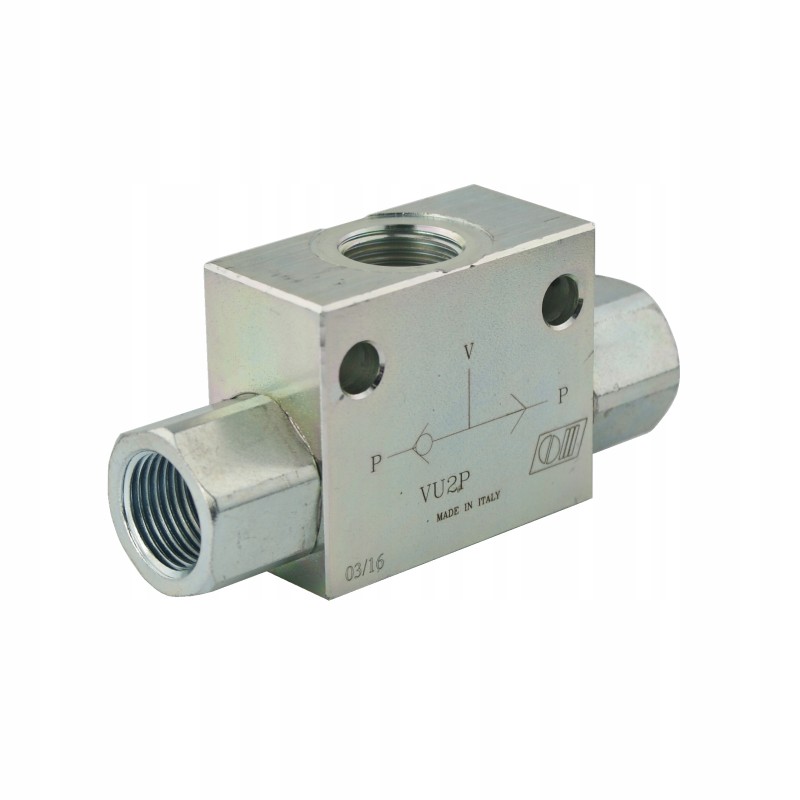

Hydraulic switching valve vu2p 3 4 110l

ALTERNATIVE HYDRAULIC VALVE VU2P 3/4' Production:

Original Italian product of the Oleodinamica Marchesini brand, symbol: VU2P 3/4', 1.35.42.020

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry .

The alternative or switching valve is intended for systems where two power sources are installed, e.g. two pumps supplying the same receiver or hydraulic line.

Principle of operation:

The valve allows the system to be powered by the pump that obtains the higher pressure at a given moment. This system ensures maximum use of the potential in a system consisting of multiple power sources with variable pressure.

Connection:

Connect P and P1 to the supply lines and C to the receiver.

Technical data:

Maximum flow: 110 l/min

Number of hydraulic holes in body: 2

External threads in the body: 3/4' [BSP]

Body material: galvanized steel

Maximum pressure: 450 bar

Weight: 1.086 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to + 60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

Hydraulic diagram of the VU2P sequence valve (photo):
