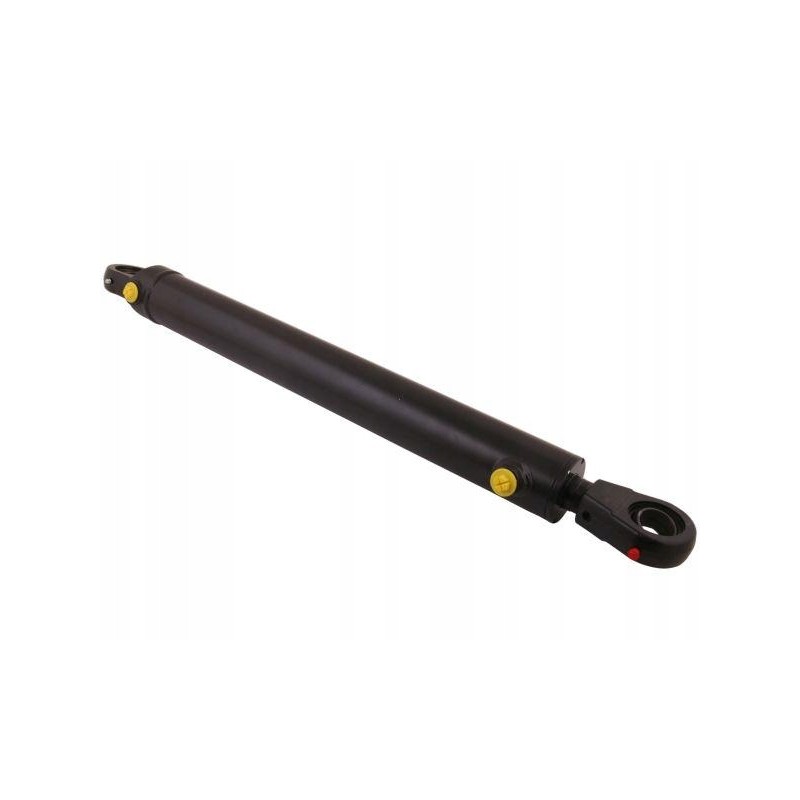

Hydraulic cylinder warynski cj2f 63 36 500z

Hydraulic cylinder, double-sided actuator CJ2F-63/36/500Z for Loader TUR WaryńskiHydraulic cylinder - double-sided actuator CJ2F-63/36/500Z for Loader TUR Waryński *Technical data:

Eyes Ø35mm

Input I M22x1.5 internal thread

Input II M22x1.5 internal thread

Stroke 500mm

Dimension after folding 782mm

Dimension after unfolded 1282mm

Piston rod Ø36mm

Pipe (outer dimension) Ø73mm

Pressure 16-32 Mpa 160-320 bar

Hydraulic cylinders from Waryński are characterized by:

* High technological standard (guarantees repeatability).

*Tightness control of the finished product included in the production process (all hydraulic cylinders are subjected to low-pressure leak test at the production stage).

* Extended quality control of the finished product.

* Increased service life (due to properly selected material and maintaining production standards for the first assembly).

* Easy product identification (marked, among others, on the outer surface of the steel pipe).

* Detailed specification (ensures easy search for specific parameters)

* Producer: Waryński
