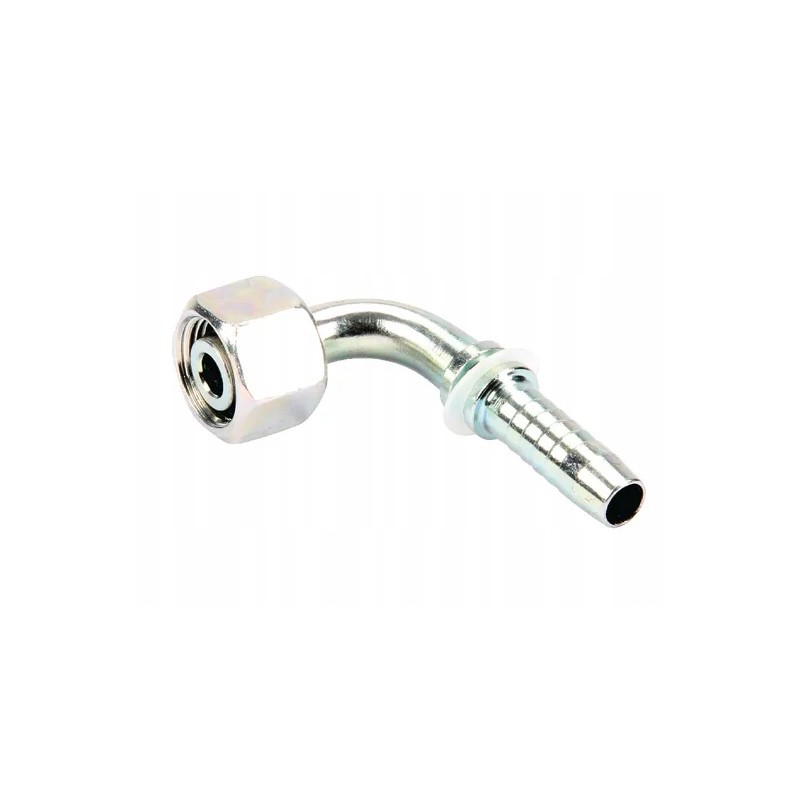

Pglo132290 tip dn13 m22x1 5 15l 90

PGLO132290 Tip DN13-M22x1.5-15L-90°EAN

8716106441402

Cone angle

24 °

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOL

Connector no. 1 thread diameter

M22

Pitch thread of connector no. 1

1.50 mm

Wrench size for connector no. 1

27.0 mm

Type of connector no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

1/2 inch

Diameter of joint no. 2

13 mm

Dimension from the axis of joint no. 2 to the end of the next joint

40.5 mm< p>

Angle

90 °

Material

Steel

Surface treatment

Galvanized< p>

White passivated

Series

15L

OE reference number

H1221593-082200

Connection

xx

Type

DKOL
