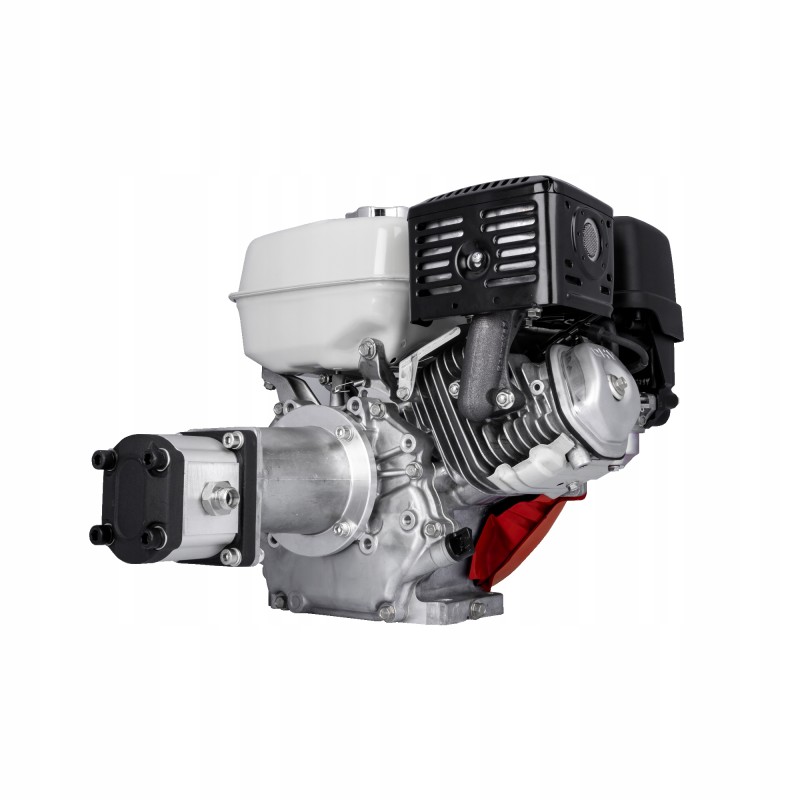

Honda GX270 internal combustion engine, pump 20l 5 55cm3

HONDA GX270 INTERNAL COMBUSTION ENGINE WITH GR1 PUMP MAX PERFORMANCE: 20 L/MIN, MAX PRESSURE: 170 BARProduction:

Original Honda product, symbol: 1.43.063.01.555

Application:

It is widely used in hydraulic systems in agriculture, construction and industry.

Parameters of the pump in cooperation with the combustion engine:

Recommended parameters for operation continuous:

Pump capacity at 3000 rpm on the combustion engine: 16.6 l/min

Maximum oil pressure at 3000 rpm on the engine combustion engine: 150 bar

Pump capacity at 3600 rpm on the combustion engine: 20 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 140 bar

Maximum operating parameters:

Pump capacity at 3600 rpm on the combustion engine: 20 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 170 bar

Technical parameters of the engine:

Model: GX270 UT2QXQ4OH

Engine type: four-stroke, overhead valve OHV, air-cooled

Cylinder type: steel

Shaft type: horizontal

Shaft diameter: 25 mm

Displacement: 270 cm3

Cylinder diameter and stroke: 77 x 58 mm

Compression: 8.5: 1

Maximum power: 6.3 kW (8.4 HP) / 3600 rpm

Continuous power at 3000 rpm: 4.6 kW (6.2 HP) )

Continuous power at 3600 rpm: 5.1 kW (6.8 HP)

Max torque: 19.1 Nm / 1.94 kgm / 2500 rpm/ min

Ignition: electronic

Starting: manual

Fuel tank capacity: 5.3 liters

Fuel consumption: 2.4 l /h /3600 rpm

Oil sump capacity: 1.1 liters

Dimensions (length x width x height): 381 x 428 x 422 mm

Weight: 25.8kg

Technical parameters of the hydraulic pump:

Geometric volume: 5.55 cm3/rev

Direction of rotation : right

Speed range: 800 - 4000 (rpm)

Connections: internal threads in the body G 3/8'

The set includes threaded connections external output M18x1.5
