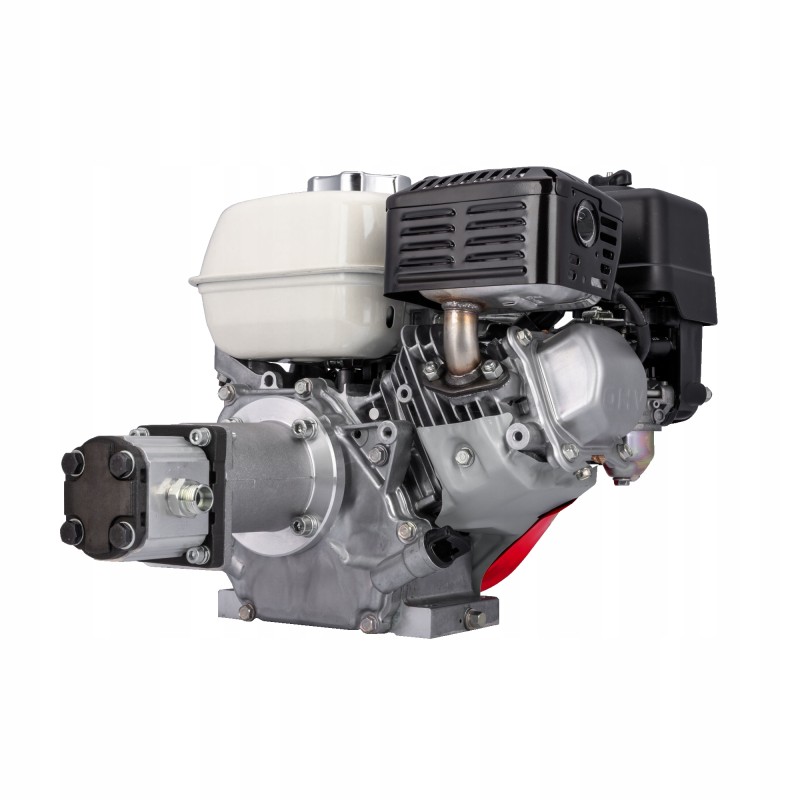

Honda GX120 internal combustion engine, pump 11l 3 05cm3

HONDA GX120 INTERNAL COMBUSTION ENGINE WITH GR1 PUMP MAX PERFORMANCE: 11 L/MIN, MAX PRESSURE: 130 BARProduction:

Original Honda product, symbol: 1.43.026.01.305

Application:

It is widely used in hydraulic systems in agriculture, construction and industry.

Parameters of the pump in cooperation with the combustion engine:

Recommended parameters for operation continuous:

Pump capacity at 3000 rpm on the combustion engine: 9.15 l/min

Maximum oil pressure at 3000 rpm on the engine combustion engine: 105 bar

Pump capacity at 3600 rpm on the combustion engine: 11 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 105 bar

Maximum operating parameters:

Pump capacity at 3600 rpm on the combustion engine: 11 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 130 bar

Technical parameters of the engine:

Model: GX120 UT3QX4OH

Engine type: four-stroke, overhead valve OHV, air-cooled

Cylinder type: steel

Shaft type: horizontal

Shaft diameter: 19 mm

Displacement: 118 cm3

Cylinder diameter and stroke: 60 x 42mm

Compression: 8.5:1

Maximum power: 2.6 kW (3.5 HP) / 3600 rpm

Continuous power at 3000 rpm: 1.8 kW (2.4 HP)

Continuous power at 3600 rpm: 2.1 kW (2.8 HP)

Max torque: 7.3 Nm / 0.74 kgm / 2500 rpm< p>

Ignition: electronic

Starting: manual

Fuel tank capacity: 2 liters

Fuel consumption: 1 l/h /3600 rpm/ min

Oil sump capacity: 0.6 liters

Dimensions (length x width x height): 305 x 341 x 329 mm

Weight: 13.0kg

Technical parameters of the hydraulic pump:

Geometric volume: 3.05 cm3/rev

Direction of rotation: right

Speed range: 800 - 5000 (rpm)

Connections: internal threads in the body G 3/8'

The set includes connections with external output thread M18x1.5< p>
