Pump bell connector gr1 engine 0 12 0 25 kw

BELL STABILIZER COLLAR GR1G63 0.12-0.25kW CONNECTOR OF ELECTRIC MOTOR WITH HYDRAULIC PUMP Production:

Original product of the Hydrolider brand, symbol: 1.42.00.102

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry .

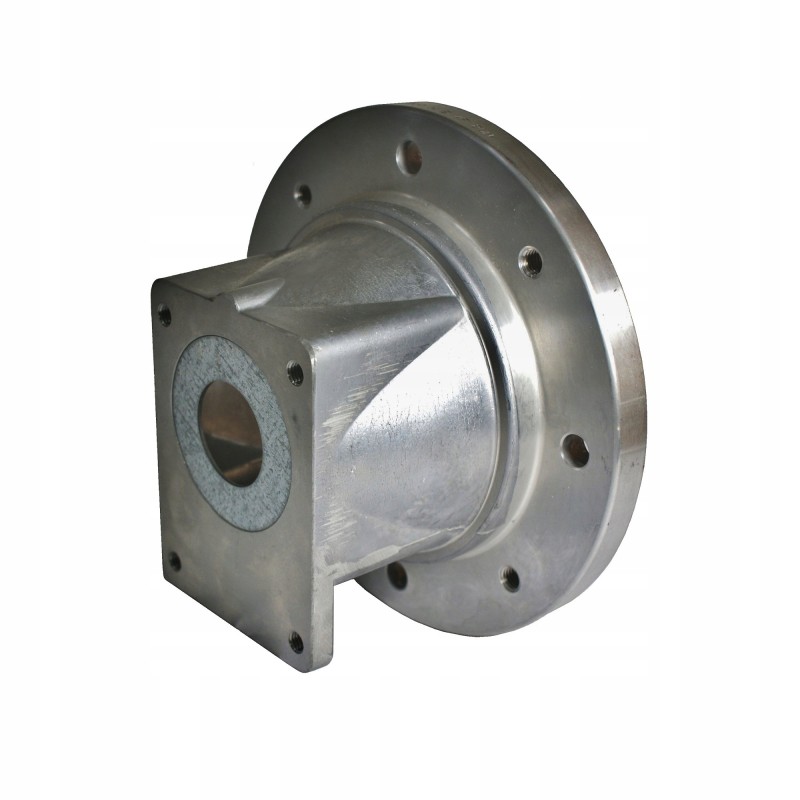

The aluminum bell connector is an element connecting a European-type hydraulic pump with a single- or three-phase electric motor with a B35 type body. Additionally, it stabilizes and protects against damage the dog clutch, which directly transfers the drive from the engine to the pump.

Integration:

Fits engines with mechanical size: G63 and power: 0.12 - 0.25 kW

Fits the pump with a European type flange from the group : 1 (10)

Suitable for coupling type: GR1 G63 0.12-0.25kW W:11

Example application:

Using a bell connector when connecting a hydraulic pump to a 3-phase electric motor (photo):
