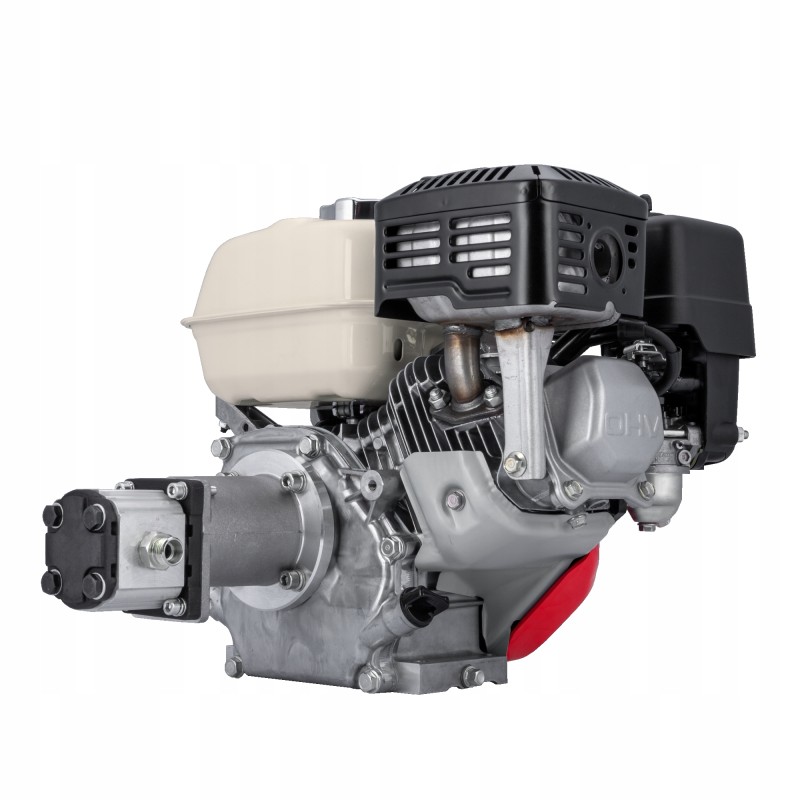

Honda GX200 internal combustion engine, pump 8 82l 2 45cm3

HONDA GX200 INTERNAL COMBUSTION ENGINE WITH GR1 PUMP MAX PERFORMANCE: 8.82 L/MIN, MAX PRESSURE: 260BAProduction:

Original Honda product, symbol: 1.43.043.01.245

Application:< p>

It is widely used in hydraulic systems in agriculture, construction and industry.

Pump parameters in cooperation with the combustion engine:

Recommended parameters for continuous operation:

Pump capacity at 3000 rpm on an internal combustion engine: 7.35 l/min

Maximum oil pressure at 3000 rpm on the combustion engine: 245 bar

Pump capacity at 3600 rpm on the combustion engine: 8.82 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 230 bar

Maximum operating parameters:

Pump efficiency at 3600 rpm on the combustion engine: 8.82 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 260 bar

Engine technical parameters:

Model: GX200 UT2QX4OH

Engine type: 4-stroke, overhead valve OHV, air-cooled

Cylinder type: steel

Type shaft: horizontal

Shaft diameter: 19 mm

Displacement: 196 cm3

Cylinder diameter and stroke: 68 x 54mm

Compression : 8.5:1

Maximum power: 4.3 kW (5.8 HP) / 3600 rpm

Continuous power at 3000 rpm: 3.3 kW (4.4 HP)

Continuous power at 3600 rpm: 3.7 kW (5.0 HP)

Max torque: 12.4 Nm / 1.26 kgm / 2500 rpm

Ignition: electronic

Starting: manual

Fuel tank capacity: 3.1 liters

Fuel consumption : 1.7 l/h /3600 rpm

Oil sump capacity: 0.6 liters

Dimensions (length x width x height): 321 x 376 x 346 mm< p>

Weight: 16.1kg

Technical parameters of the hydraulic pump:

Geometric volume: 2.45 cm3/rev

Rotation direction: right

Rotation range: 800 - 5000 (rpm)

Connections: internal threads in the body G 3/8'

The set includes connections with external output thread M18x1.5
