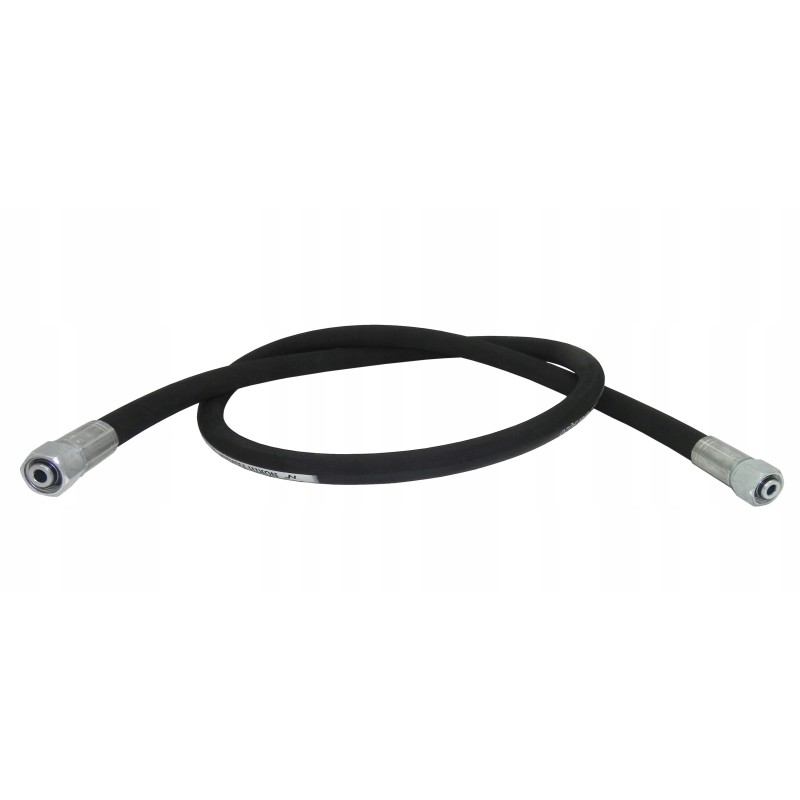

Hydraulic hose pipe dn10 18 18 aa3400 330bar

HYDRAULIC HOSE ZAKUTYTYPE AA10/2/3400/18-18 Information:

Pursuant to the Act on Consumer Rights of May 30, 2014, hydraulic hoses are not returnable.

Each hydraulic hose is an individual product and is produced to the customer's order, which, in accordance with content of the Act Art. 38 section 3 "serves to meet his individual needs." The customer individually selects the length and method of crimping the cable, and therefore agrees to complete the service. This involves incurring all costs of the cable including the crimping service. Crimping the hose and sending it to the customer means that the service has been fully completed.

Application:

Universal, pressure hydraulic hose with self-sealing clamp when tightening. It is widely used in hydraulic systems in agriculture and industry. It is used to connect basic hydraulic components, including: pumps, distributors, tanks, actuators, engines, etc.

The cable can be used in hydraulic systems with a maximum pressure of up to 330 bar and a maximum flow of up to 50L/min, in installations operating indoors and outdoors.

Technical data:

Hydraulic cable it is sealed, blown out (cleaned with pressure from the compressor), ready to be connected and operated in the system. The finished cable includes: an original, double-reinforced and flexible hose and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with ferrules: 3400mm

Type of ferrules: AA straight on both sides, nuts M18x1.5 12L

Number of braids: double braid (2SN)

Maximum pressure: 330Bar

Recommended flow in the system: from 1 to 50L/min

Internal diameter of the passage: (DN10): 10mm

External diameter of the hose: 19mm

The threads and clamping cone fit all connectors and connections in our offer.

We also offer a complete range of scope of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
