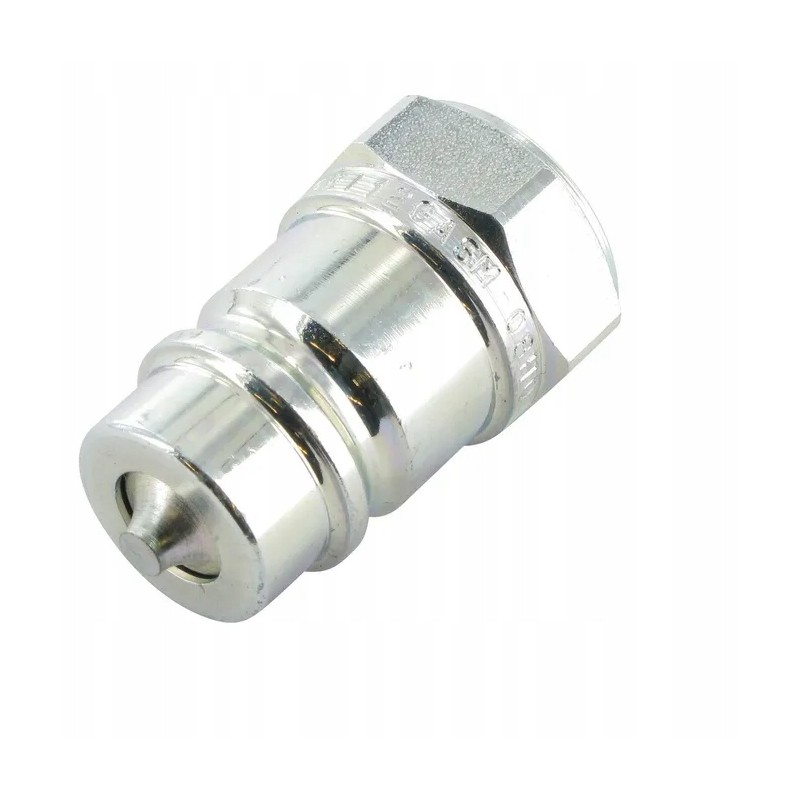

Quick connector plug 1 2 internal thread 1 2 bsp

NV12GASM Quick connector plug 1/2' female thread. 1/2' BSP with NVEAN poppet valve

8716106786022

Advantages

Easy connection thanks to light springs in the connector sleeve

Product details< p>

Cannot be joined under pressure

Mineral oil based fluids

Axial reverse actuation of the locking sleeve (single acting)

Induction hardening in places exposed to rapid wear

No tear-off function

Large number of locking balls

Shape

Straight - 2 sides of the connection

Size (code)

BG 3

Size

1/2 inch

Size

12.5 mm

Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Male

Connection No. 1 diameter

0.81 inch

H Connection diameter

20.5 mm

Connector thread diameter< p>

1/2 inch

Connector thread type

BSP

Connector #1 wrench size

1.06 inch

Y Connector #1 Key Size

27 mm

Connector #2 Type

Thread

Type connector no. 2 - male/female

Female

Thread diameter of connection no. 2

1/2 inch

Number of threads per inch of thread connector no. 2

14

Type of thread of connection no. 2

BSPP

Possibility of connection under pressure

No

ISO standard

7241-1-A

Flow at 2 bar pressure

75 l/min

O.D.

1.18 inch

O.D.

30 mm

Length

44 mm

Total length

1.73 inch

C Total length

88 mm

Material

Steel

Surface treatment

Chrome-plated

Working pressure

300 BAR

Working temperature max.

125 °C

Operating temperature min.

-25 °C

Quick connector lock type

Balls around the circumference

Connection method

Sleeve offset

Disconnection method

Sleeve offset

Seal material< p>

Nitrile rubber [NBR]

Series

NV

Valve type

Poppet type
