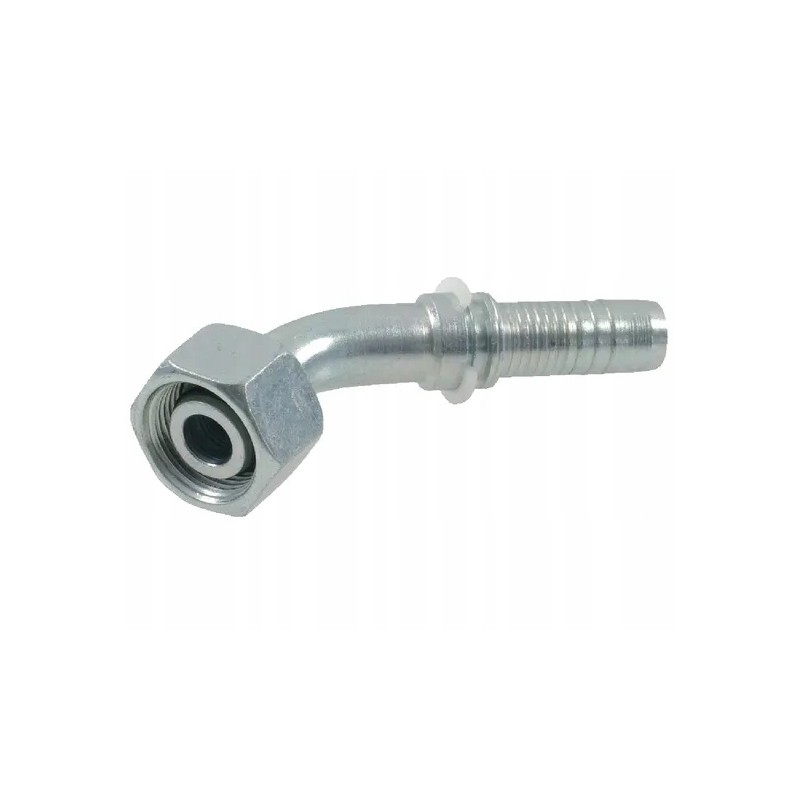

PGLO132245 Fitting DN13-M22x1.5-15L-45° Product Details

Cone, Conical Seal with O-Ring

L Series Cutting Ring Connection

Includes

Tips

O-ring

Cone angle

60°

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOL

Length of connector no. 1

61 mm

Diameter thread of connector no. 1

M22

Thread pitch of connector no. 1

1.50 mm

Type of connector thread

Metric

Wrench size for connector #1

27.0 mm

Connector type #2

Hose barb

Connector Type No. 2 - Male/Female

Male

Diameter of Connection No. 2

1/2 inch

Diameter of Connection No. 2

13 mm

Dimension from the axis of joint no. 2 to the end of the next joint

27 mm

Angle

45 °

Material

Steel

Surface treatment

Galvanized

White passivated

Series

15L

Reference number OE

H1221543-082200

Connection

xx

Type

DKOL
