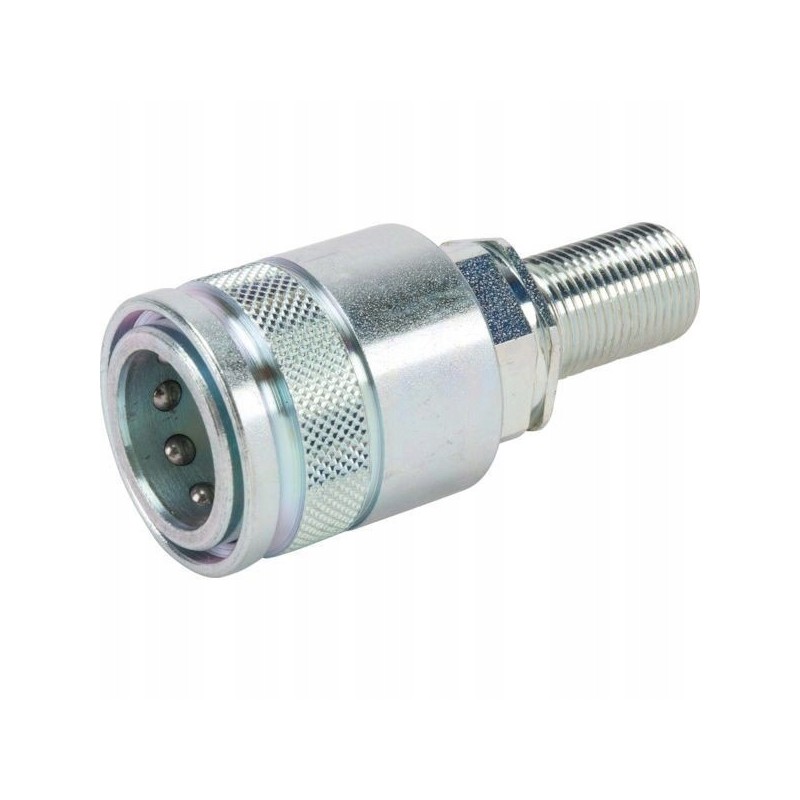

Skpf12n18n quick connector skp f male thread m18x1 5

Quick connector socket SKP-F external panel thread Gopart, M18x1.5 12L INDEX: SKPF12N18N

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil based fluids

Connection diameter: 38 mm

Surface treatment: White passivated

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Possibility of connection under pressure: No

Operating temperature max: 100°C

Operating temperature min: -30°C

Diameter of connection no. 2: 12 mm

Spare parts: OR203026290P010

Thread pitch of connector no. 2: 1.5 mm

Type of connector no. 2: Thread

Thread diameter of connection no. 2: M18

Size (code): BG 3

Connection thread type no. 2: Metric

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male
