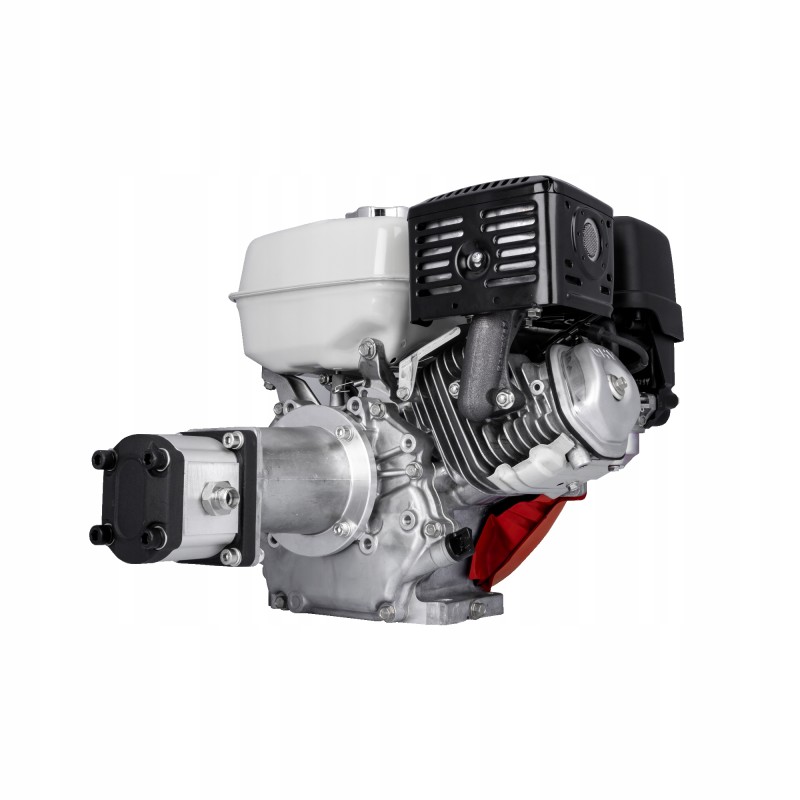

Honda GX270 internal combustion engine, pump 22 5l 6 25cm3

HONDA GX270 INTERNAL COMBUSTION ENGINE WITH GR1 PUMP MAX PERFORMANCE: 22.5 L/MIN, MAX PRESSURE: 150 BARProduction:

Original Honda product, symbol: 1.43.063.01.625

Application:< p>

It is widely used in hydraulic systems in agriculture, construction and industry.

Pump parameters in cooperation with the combustion engine:

Recommended parameters for continuous operation:

Pump capacity at 3000 rpm on an internal combustion engine: 18.8 l/min

Maximum oil pressure at 3000 rpm on the combustion engine: 135 bar

Pump capacity at 3600 rpm on the combustion engine: 22.5 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 120 bar

Maximum operating parameters:

Pump efficiency at 3600 rpm on the combustion engine: 22.5 l/min

Maximum oil pressure at 3600 rpm on the combustion engine: 150 bar

Engine technical parameters:

Model: GX270 UT2QXQ4OH

Engine type: 4-stroke, overhead valve OHV, air-cooled

Cylinder type: steel

Type shaft: horizontal

Shaft diameter: 25 mm

Stroke capacity: 270 cm3

Cylinder diameter and stroke: 77 x 58 mm

Compression: 8.5:1

Maximum power: 6.3 kW (8.4 HP) / 3600 rpm

Continuous power at 3000 rpm: 4.6 kW (6.2 HP)

Continuous power at 3600 rpm: 5.1 kW (6.8 HP)

Max torque: 19.1 Nm / 1, 94 kgm / 2500 rpm

Ignition: electronic

Starting: manual

Fuel tank capacity: 5.3 liters

Consumption fuel: 2.4 l/h / 3600 rpm

Oil sump capacity: 1.1 liters

Dimensions (length x width x height): 381 x 428 x 422 mm

Weight: 25.8kg

Technical parameters of the hydraulic pump:

Geometric volume: 6.25 cm3/rev

Rotation direction: right

Rotation range: 800 - 3750 (rpm)

Connections: internal threads in the body G 3/8'

The set includes connections with M18x1.5 male output thread
