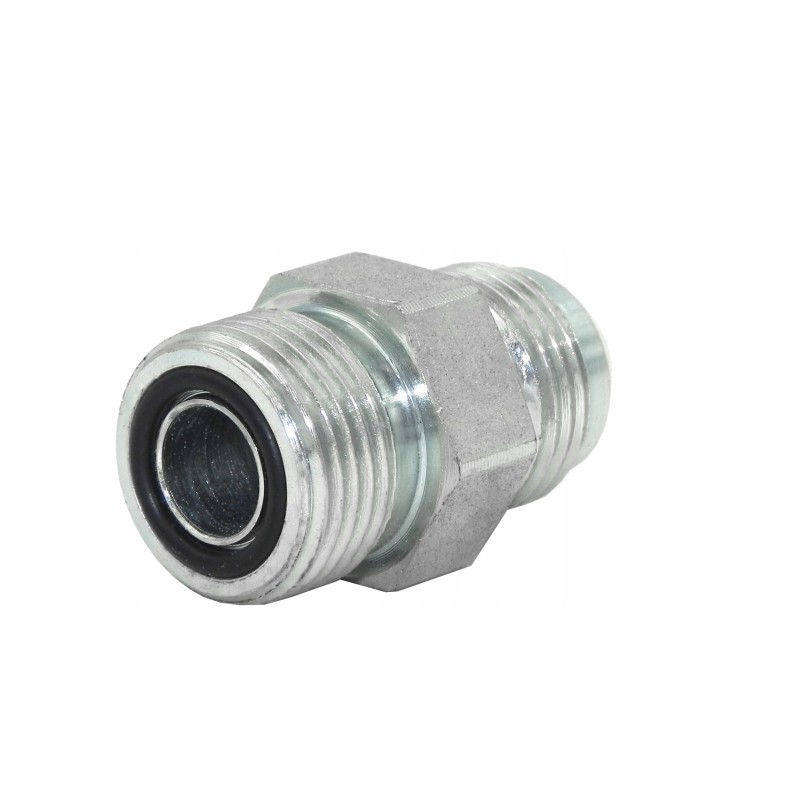

Hydraulic connector orfs fitting 1 unf 7 8

HYDRAULIC CONNECTOR ORFS CONNECTOR 1'' - UNF 7/8''Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connector Standardized light version with conical self-seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, connectors can be purchased at our other auctions.

Technical data:

Thread on one side: external inch ORFS 1''

Thread on the other sides: external inch UNF 7/8''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
