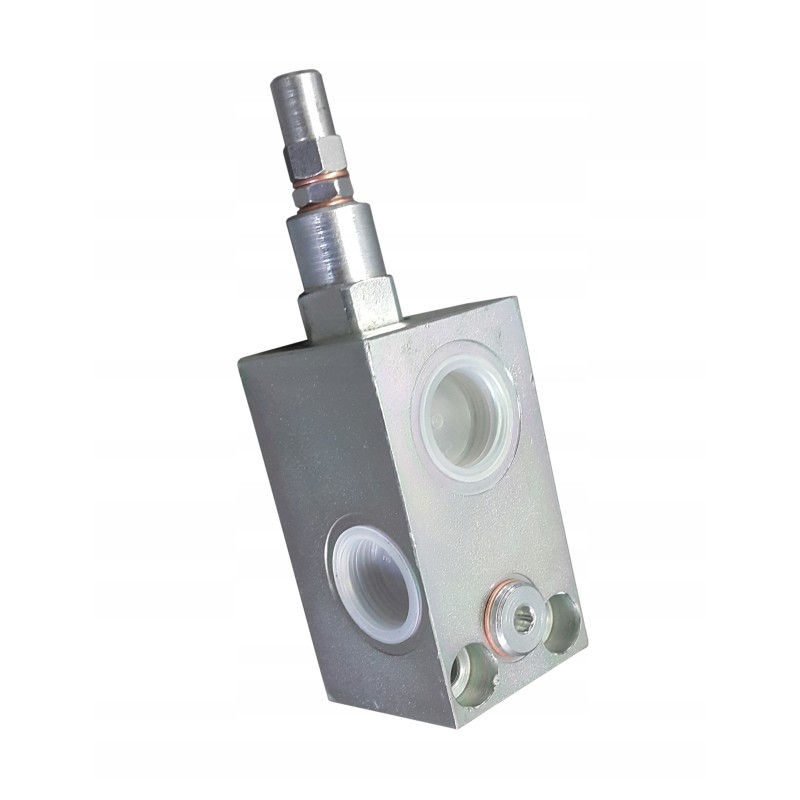

VMP 3/8' Hydraulic Overflow Valve with pressure regulation [0340]

The purpose of the overflow (safety) valve is to limit the maximum pressure in the hydraulic system to a set value.

It protects the hydraulic system against overload.

The valve can be set to the desired pressure using the installed regulator in it.

Directly controlled, guarantees fast operation.

The valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

Symbol: DBV-E-40-06 Technical specifications: Maximum flow: 45L /min.,

Internal threads in the body: connection port 3/8',

L [mm]: 72

L1 [mm]: 134

L2 [mm]: 15

L3 [mm]: 26

L4 [mm] : 49.5

L5 [mm]: 8.5

L6 [mm]: 26

Φ G [mm]: 6.5

H [mm]: 40

S [mm]: 40

Pre-set pressure: 90 Bar

Overflow pressure regulation: from 50 to 220 Bar

Permissible pressure: max. pressure. 350 Bar,

Permissible ambient temperature: -40'C to +60'C,

Permissible oil temperature: -15'C to +80'C,

Oil type: mineral oil-based hydraulic oil,

Material: body - galvanized galvanized steel

Sealing material: BUNA N

Connection:P to the supply line,

T to the tank (overflow),
