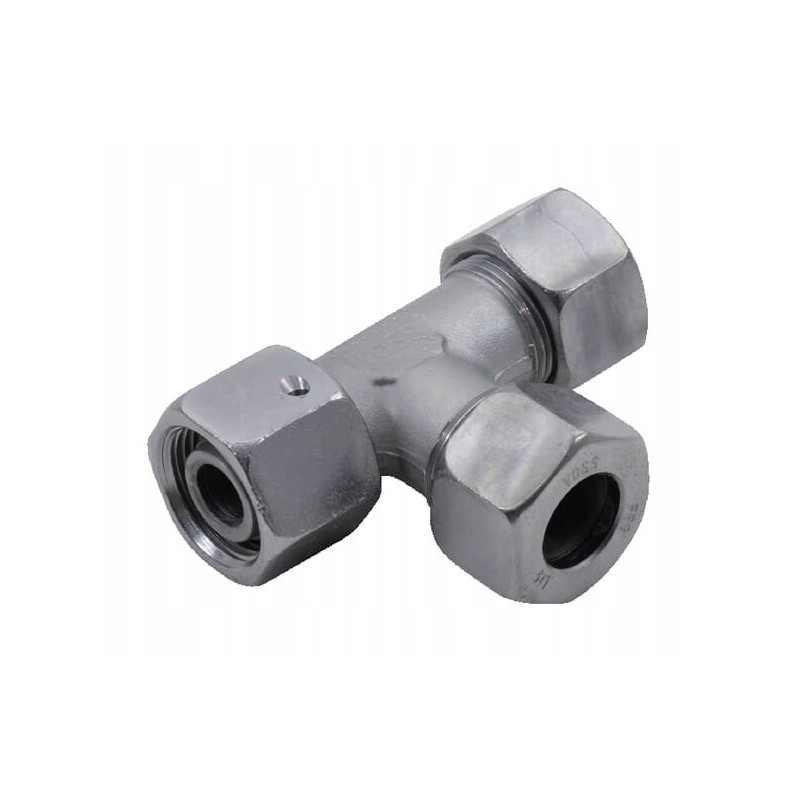

Adjustable T-connector 10l

Adjustable tee connector 10L Parameters

Part number: ELVD10L

Unit: Piece

Manufacturer: Voss

Shape: Tee (T) - 3 ports

Connector type #1: Cutting ring

Connector type #1 - Male/Female: Female

Connection diameter: 10 mm

Wrench size for Connector No. 1: 19.0 mm

Connector Type No. 2: Cutting Ring

Connector Type No. 2 - Male/Female: Male

Connector Diameter No. 2: 10 mm

Connector Type No. 3: Cutting Ring

Connector Type No. 3 - Male/ female: Male

Connection diameter no. 3: 10 mm

Pipe diameter: 10 mm

Body height: 17 mm

Max. working pressure: 500 BAR

Inner diameter sealing ring: 8.5 mm

Sealing washer thickness: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Advantages

- Cutting ring 2S

Product details

- 2S cutting ring - Optimum connection to the cutting ring and perfect function - High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request Dimension from the axis of the joint to the end of the next joint 30mm

Dimension from the axis of joint no. 2 to the end of the next joint 29mm

Dimension from the axis of joint no. 3 to the end of the next joint 15mm

DIN standard

- 2353

- 3865

- 2401

Surface treatment

- Zinc

- Nickel plated
