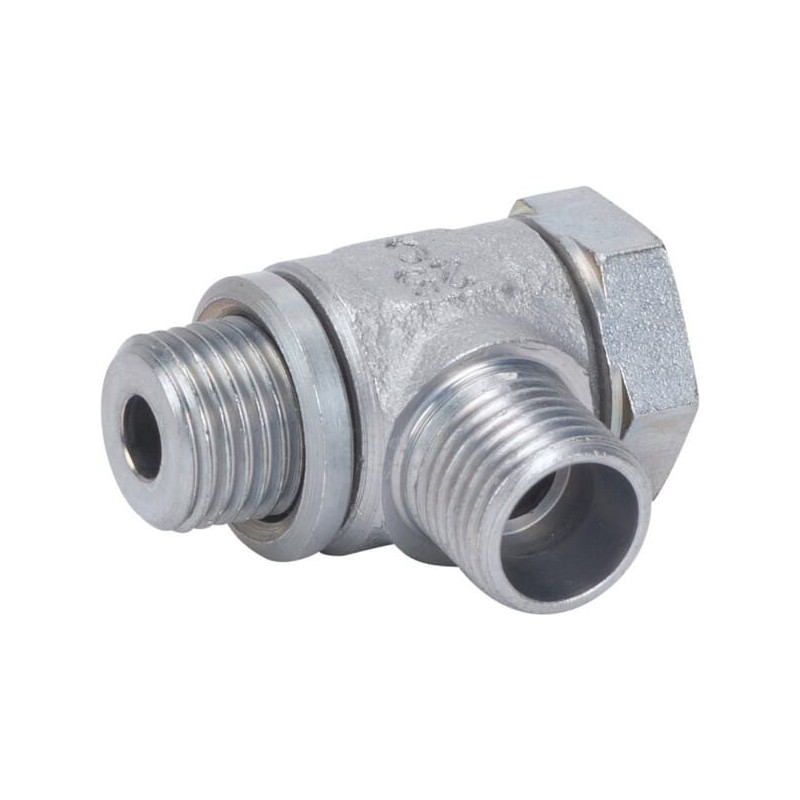

Banjo connector m10x1 m10x1 6ll

Banjo Connector M10x1 - M10x1 6LL Parameters

Part Number: RSWS6LLM10

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Banjo

Connector Type No. 1 - Male/Female: Male

Connector No. 1 Thread Diameter: M10

Connector Thread Length : 6 mm

Connector No. 1 Thread Pitch: 1.00 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 14 mm

Connector No. 1 Wrench Size: 14.0 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - male/female: Male

Connection No. 2 diameter: 6 mm

Connector No. 2 length: 20.5 mm

Connection No. 2 thread diameter: M12

Connector No. 2 thread pitch: 1.50 mm

Connection No. 2 thread type: Metric

Wrench size for connector no. 2: 14.0 mm

Pipe diameter: 6 mm

ISO standard: 228

Angle: 90 °

Working pressure max.: 100 BAR

Seal material: Metal

Series: LL

Tightening torque max.: 15 N ·m

Product details

- High corrosion resistance - Adjustable direction

- The setting of the selected direction can be locked using the nut - Hydraulic hoses

- Hydraulic pipes

Dimension from the axis of the joint to the end of the next joint 15.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 9mm

DIN standard

- 2353

- 228

- 3852

- 2401

Internal diameter

- 4 mm

- 4.5 mm

Surface treatment

- Zinc

- Nickel plated
