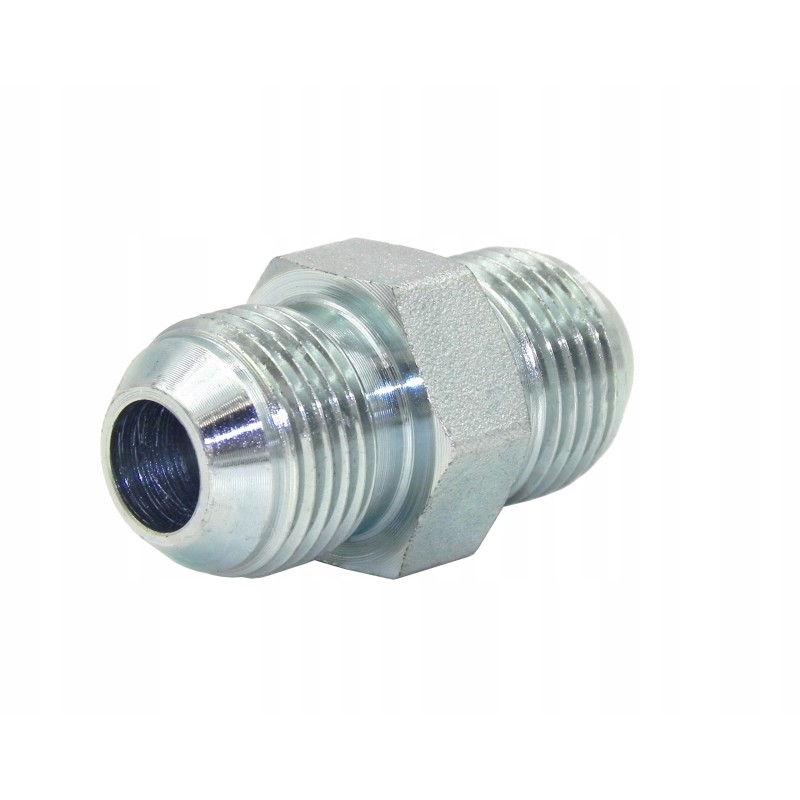

Hydraulic coupling connector unf 3 4 unf 7 8

HYDRAULIC CONNECTOR UNF 3/4'' - UNF 7/8'' CONNECTOR Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connector, standard, lightweight version with conical self-sealing clamp when tightened. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connectors that can be purchased at our other auctions.

Technical data:

Thread on one side: external inch UNF 3/4''

Thread on the other side: external inch UNF 7/8''

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
