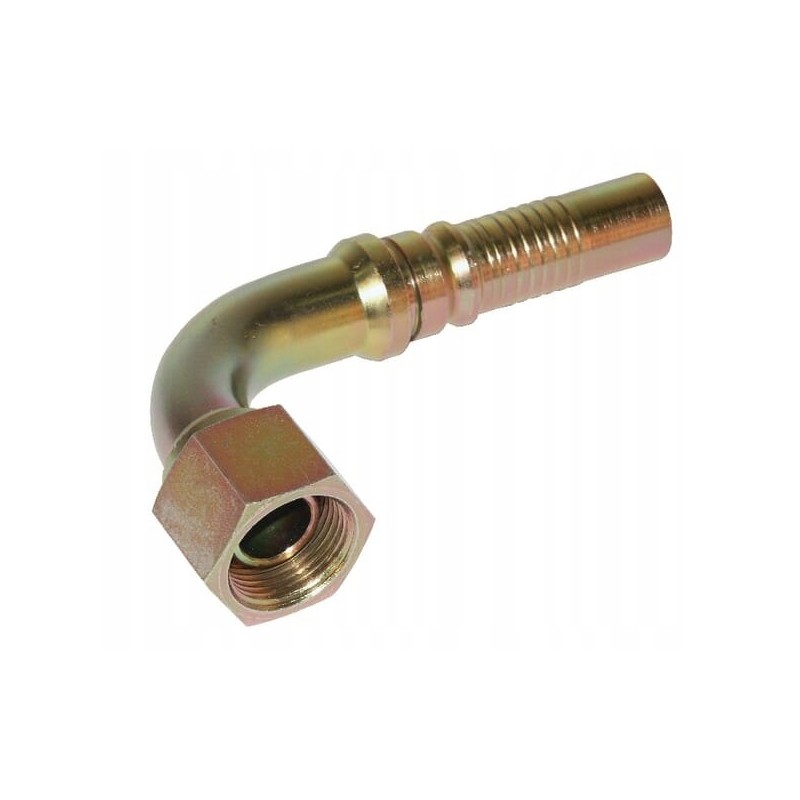

Tip 4sh dn20 3 4 bsp 90

4SH-DN20-3/4' BSP-90° tip Parameters

Part Number: DKRH201290

Unit: Piece

Manufacturer: Alfagomma

Cone Angle: 60 °

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Conical with O-Ring

Connector Type No. 1 - Male/Female: Female

Type of connector no. 1 - code: DKOR

Diameter of connector no. 1: 3/4 inch

Connection diameter: 20 mm

Length of connector no. 1: 58 mm

Connector thread diameter: 3/4 inch

Number of turns per inch of thread of connector no. 1 : 14

Connector Thread Type: BSP

Wrench Size for Connector No. 1: 32.0 mm

Connector Type No. 2: Hose Barb

Connector Type No. 2 - Male/Female: Male

Connection Diameter No. 2: 3/4 inch

Standard ISO: 228

Angle: 90 °

Material: Steel

OE reference number: H1420892-121200

Connection: BSP union nut with 60° cone

Type: DKOR

Advantages

- Reinforced clamping with anti-tear protection Product details

- Clamping strength reinforced with the Interlock system - O-ring sealing ring - For heavily loaded machines operating with high working and peak pressure

- Hydrostatic drives

Benefits

- Reinforced clamping with anti-tear protection Contains

- Tips

- O-ring sealing ring Surface treatment

- Galvanized

- White passivated

Application

BSP connections with a 60° cone
