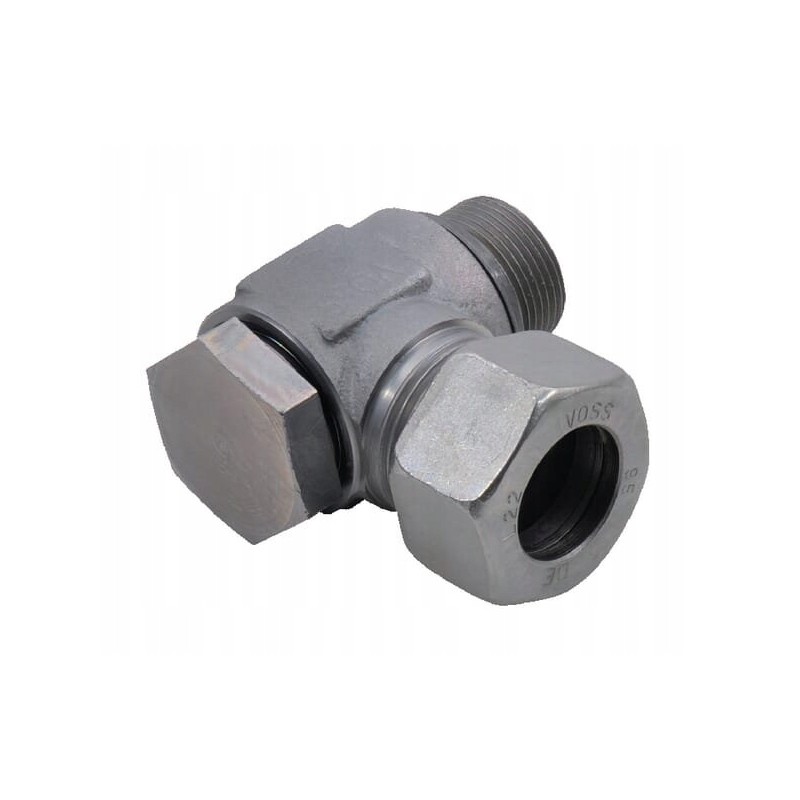

Angled threaded swivel connector 12l m16

Angle swivel threaded fitting 12L M16 Parameters

Part Number: RSWV12LM16WD

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Cutting Ring

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 12 mm

Connector No. Thread Diameter 1: M18

Connector Thread Length: 12 mm

Connector No. 1 Thread Pitch: 1.50 mm

Wrench Size for Connector No. 1: 22.0 mm

Connector No. 2 Type: Banjo

Connector No. 2 Type - Male/Female: Male

Thread Diameter connection no. 2: M16

Thread pitch of connection no. 2: 1.50 mm

Thread type of connection no. 2: Metric

Pipe diameter: 12 mm

ISO standard: 228

Angle: 90 °

Working pressure max.: 400 BAR

Product description

Angle connector, threaded, swivel RSWV metric WD

Advantages

- Cutting ring 2S

Product details

- 2S cutting ring - Optimum connection to the cutting ring and perfect function - High corrosion resistance - Adjustable direction

- The setting of the selected direction can be locked using the nut - Hydraulic hoses

- Hydraulic pipes

Dimension from the axis of the joint to the end of the next joint 33mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated

Seal material

- Metal

- Synthetic elastomer

Series

-LL

-L

- S
